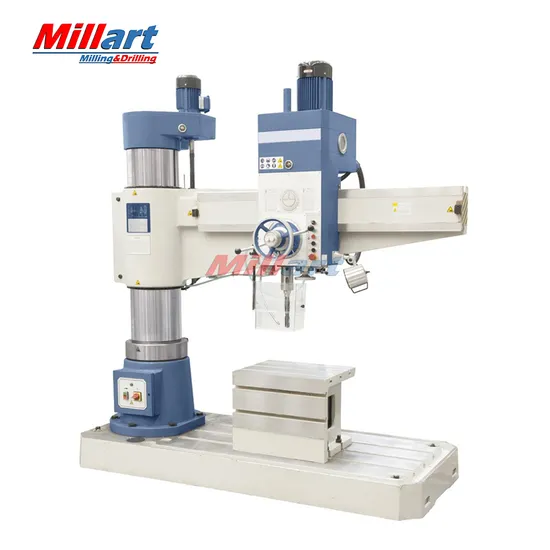

Radial Arm Drill Press Machine Manufacturer Z3063X20A Z3063X25A Rock Drilling Machine

Product Description

Radial Arm Drill Press Machine Manufacturer Z3063X20A Z3063X25A Rock Drilling Machine
Feature:
Gather mechanical-electrical-hydraulic functions, use extensively.
With wide range of speed and feed, with manual,power and fine feeds.
The feed of machines are very easily engaged and disengaged at any time.
With safe and reliable feed safety machine, all parts easy operation and change.
All controls centralized on the head stock easy operation and change.
Clamping for assemblies and speed change of spindle achieved by hydraulic power.
Main parts are made by machine center with high precision and efficiency, ensuring reliability and high quality.
Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
Spindle parts are made by special high quality steel heat treatment ensuring high strength and durability.
Main gears are all precision grind, ensuring high precision and low noise.
Technical parameter:

Specification	Units	Z3063×20A
Max. drilling diameter	mm	63
Column diameter	mm	450
Distance from spindle nose to base	mm	400-1600
Distance from spindle axis to column	mm	450-2050
Spindle travel	mm	400
Spindle taper	Morse	MT5
Range of spindle speeds	r/min	20-1600
Number of spindle speeds	step	16
Range of spindle feeds	mm/r	0.04-3.20
Number of spindle feeds	step	16
Work table dimensions	mm	950x630x500
Base dimensions	mm	2900x1250x250
Table size	mm	630x800
Spindle motor power	kw	5.5
Machine weight	kg	6800
Overall dimension	mm	348x147x221

Standard accessories:
Box type worktable
Drill chuck
Taper sleeve
Wrench
Optional accessories:
Spindle guard
Machine vise
Company information:
FAQ:
1: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Grinding Machines, Saws, Shapers, Presses, Sheet Metal Machines.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose according to your requirements.
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Yes, the progress of the machine will be updated regularly and sent to you.
