| Model | W62K-4x1300 |
| Nominal pressure | 1000KN |
| Strokes | 14Min-1 |
| Throat depth | 200mm |
| Folding length | 1300mm |
| Folding thickness | 0.5-4mm |
| Max angle of bending beam | 110° |
| Max lifting height of the upper beam | 200mm |
| Motor power | 5.5kw |
| Net weight | 3500kg |
| Dimension | 2000*2850*1830mm |

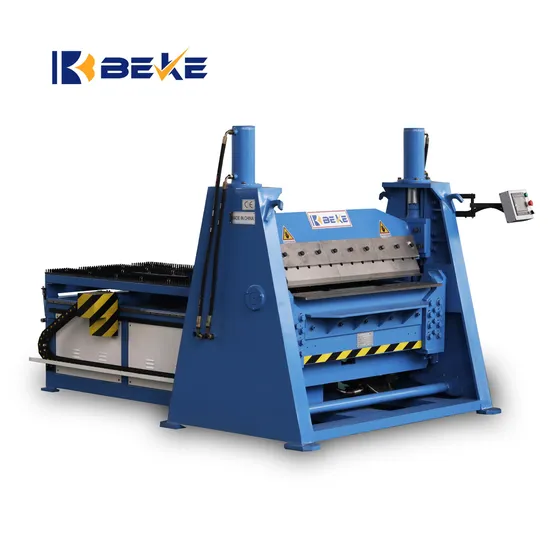

| W62K main functions:High quality advanced machine with high quality;Welded frame stressed relieved to reduce distortion, durable, rigid and difficult to deform;Fully hydraulic controlled, quite and easy to operateThe pressing blade can be subsection, it is suitable for manufacturing box/pan type products;The open height is 200mm;The upper pressing blade can adjust the height automatically;The working angle can be adjusted promptly;Full welded-steel plate construction. Stress relived to ensure continued high accuracy;Machine is hydraulically powered;Low energy consumption, easy to maintain and very durable;Under acting die is fully adjustable with open height up to 110mm and suitable for producing disk, box like wokrpiece;The bending angle and back gauge is controlled by numerical control system, rapidly and accurately | |
