Allheart Marine 8m Aluminum Patrol Boat Cabin Boat with Lowest Price

Product Description

Allheart Marine
Allheart Marine located in beautiful coastal city of West Coast in Qingdao, which comprehensive manufacturing enterprise integrating design,production, sales and service of aluminum alloy yacht and boat.
Allheart aluminum boat and trailer more than 80% of the products are exported to United States, Australia, Europe and other regions. With the goal of full customer satisfaction, Allheart keeps up with the forefront of industry design,and cooperates with famous designers from Australia, New Zealand and Germany.
Since 2012 establishment, Allheart has successively developed RAMBLER series, PIONEER series, FISHER series,Sail series,VOYAGER ranging length from 3m-24m, more than 60 different models including tourist boat,landing craft,luxury yacht, pilot boat, patrol boat and high speed passenger ferry.

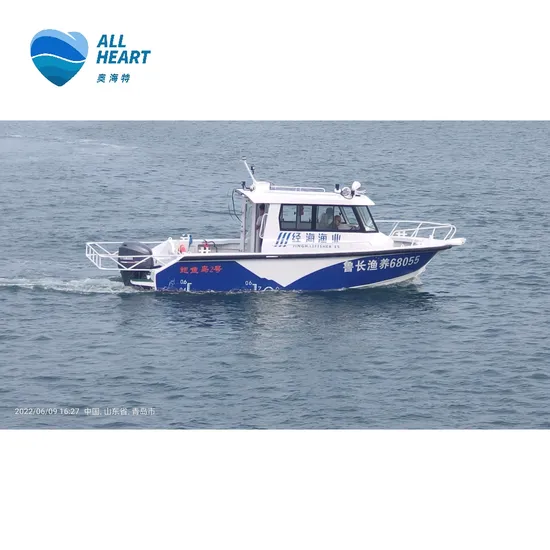

Factory Made Lower Price 8m Aluminum Hull Pilot Boat Patrol Boat

number	Material name	Specifications	material	quantity	remark
i	Hull material
1	All aluminum	3-8mm	5083-116	1
2	Main deck aluminum	4mm	5083-116	1
3	Fender (aluminum tube)		6082	1
4	welding stick	φ1.2mm	5183	1
5	Oil paint			1
6	Anti-fouling paint			1
7	Enclosed operator cab	Standard finishing	5083-116	1
ii	Outfitting equipment material
1	driving console		5083	1
2	guard bar			1
3	handrail			1
4	Driving seat			1
5	Sofa chair			7
6	Oil filler			1
7	All kinds of hardware outfitting parts			1
iii	Mooring equipment
1	Plain anchor	20kg	Q235-A	1
2	Fiber rope (instead of anchor cable)	φ14mm	fiber rope	55m
3	Fiber mooring line	φ12mm	fiber rope	50m
4	towrope	φ12mm	fiber rope	55m
5	mooring cleat	φ45mm	Stainless steel	4
6	Bow cross bollard	φ60mm	Stainless steel	1
7	fairlead	φ100mm	nylon	1
iv	Doors, Windows, covers
1	weathertight door	According to design size	Bridge aluminum	1	cab
2	fixed window	According to design size	Broken bridge aluminum, tempered glass	8
3	storage compartment hatch	According to design size	5083	1
4	fuel tank hatch	According to design size	5083	1
5	battery compartment hatch	According to design size	5083	2
6	Sail hatch	According to design size	5083	1
7	watertight access cover	φ200		2
FOUR	Fire fighting and life saving equipment
1	boat life jacket			8	with life jacket light
2	life buoy			5	With lifebuoy holder + 18m lifeline
3	Portable dry powder fire extinguisher	5kg		2	With fire extinguisher rack
4	Portable CO2 fire extinguisher	2kg		2	With fire extinguisher rack
5	fire bucket with rope			2
6	anti-collision ball			6
7	rocket parachute signal			2
FIVE	signal equipment
1	Ball size			3
2	Diamond shape			1
3	Cylindrical shape			1
4	metal whistle			1
SIX	Electrical Equipment
1	Maintenance-free battery	150Ah,12VDC	Ship inspection certificate	2	Host startup, lighting, etc
2	distribution board			1
3	overhead lighting	12VDC 2W,LED,IP44		1
4	starboard light	12VDC 2W 1n mile,IP56,LED,green		1
5	port light	12VDC 2W 1n mile IP56,LED,red		1
6	white ring light	12VDC 2W 2n mile IP56,LED		1
7	White Ambient Lights (Anchor Lights)	12VDC 2W 2n mile IP56,LED		1
8	searchlight	for boats, remote control rotating		1
9	radar			1
10	Three-in-one GPS Navigator for Marine	GPS/Beidou dual positioning Sounding, Positioning, Charts		1
11	magnetic compass		Ship inspection certificate	1
12	VHF intercom	12VDC,1.25A	Ship inspection certificate	1
13	Transponder			1
14	Beacon			1
15	electric whistle			1
16	charging socket	12VDC,10A, flushbonading		1
17	main power switch	12VDC 100A,C65N-4P		1
18	control switch	flushbonading,1A,>12V		5
19	fuse	0.5A,>12V,Matching base		5
20	fuse	10A,>12V, Matching base		1
21	Wiper			2
22	Bilge pump	12VDC		1
23	Bilge level switch	12VDC,0.1A		1
24	Bilge high level alarm	12VDC ,2W ,LED		1
25	Ship bundled flame retardant cable	CEF/SA 2x1.0mm²	Ship inspection certificate	20m
26	Ship bundled flame retardant cable	CEF/SA 1x70mm²	Ship inspection certificate	10m
SEVEN	Marine equipment
1	main propulsion unit	Gasoline outboard engine Continuous power: 250HP/184kW Number of cylinders: 6 Starting method: 12V electric start	CCS Ship inspection certificate	2	YAMAHA
2	hydraulic rudder	Compatible with gasoline on-board combination		1
3	main control system	It is matched with gasoline on-board engine, including steering, clutch, reversing, speed control and other functions		1	driving console
4	petrol tank	About 650L, meeting the endurance requirements	self-restraint	1
5	high-pitched speaker			1
6	stainless steel oil drum	60L		2

Allheart Marine Boat Advantages
1. V-bottom boat, used for recreation, fishing and sightseeing.
2. Marine grade material against corrosion.
3. All-welded.
4. Optional equipments: Fishing pole holder, storage boxes, seats dry-chemical fire extinguisher, life-jacket, hand paddle, etc. We would like to offer the best service per as the customers' requirements.
5. High quality Marine Aluminum plate with elegant capeted floor and reversible chairs, besides aluminum boat are light, high strength, easy transport, durable, anti corrosion, environment-friendly.
CE Certification from Allheart Marine
FAQ 1.Are you the manufacturer?
Yes, we are a manufacturer, we are a factory specializing in producing aluminum yacht and fishing boat and trailer.
2.Where is your factory?
Our factory is located in Wangtai Industrial Park,Jiaonan,Qingdao,Shandong,China.
3.What types of ships in your company ?
Allheart Marine had successively developed 3-24m cruisers, pioneers, fisher, sailing series which includes more than 60 models, such as work boats, passenger ferry landing craft and luxury yachts. Representative ones: 19m pilot boats, patrol boats, passenger and cargo landing crafts, 38 knots high-speed passenger ferry and leading sales one fishing boat.
4.Do you have pass the EU certification of your boats?
YES, we have passed .
5.How to inspect the quality of our products?
Quality is the root of everything. From design,to production, to delivery,we are strict with ourselves, to provide the best quality and service for customers, We may not be perfect, but we go on the road to perfect.
6.How to produce new model for customer?
We have experience excellent designers, if customer want new design boat,customers need to provide drawing and requirement of the boat ,our engineers make 3D pictures to show customer.
7.What about size and colors?
All the boats size and colors can be customized .
8.What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
9. How about your delivery time?
Generally, it will take 45 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
10. Do you test all your goods before delivery?
Yes, we have test before delivery.
Looking forward to cooperating with you!

---
