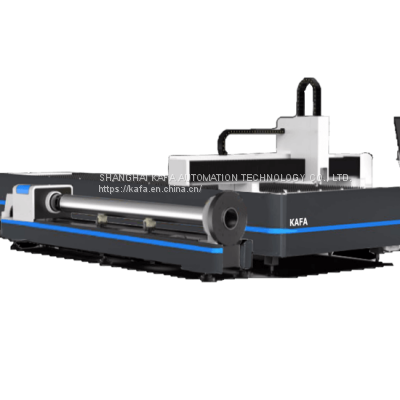

Metal sheet & tube laser cutting machines G-T Series

Product Details

Product Description

Product Description
Kafa G-T Serise is a fiber laser cutting machine for Aluminum, Carbon Steel Sheet, Stainless Steel Sheet laser cutter with cheapest price on dynamic functionality. Specialized fast speed cutting of a variety of metal plates, pipes(add pipe cutting device), mainly used in carbon steel, stainless steel, galvanized sheet, steel, rare metal various alloy plate and other materials.
Parameters:

Model	G-T Series
Working Area	1500*3000mm
Laser Power	500W/750W/1000W/2000W Raycus
Laser Wave Length	1064nm
Working Table	Saw tooth
Maximum Idle Running Speed	1200mm/s
Position Accuracy	±0.05mm/m
Position Speed	60m/min
Minimum Line Width	± 0.02mm
Cutting Thickness	≤6mm
Software and Control System	NC Editor (Optional Cypcut)
Position Type	Red DOT
Power Consumption	≤12KW
Working Voltage	110-220V,380V/50-60Hz
Auxiliary Gas	Oxygen, nitrogen, air
Air Proportional Valves	For power 1000W and higher
Working life of fiber module	More than 100000 hours
Fiber laser cutting head	WEIHONG or Raytools
Software	Compatible with various formats
Computer	Yes
Water cooling system	S&A industry chiller
Motor	Japan Yasakawa two 850W Y motors + 850W X motor
Driver	Yasakawa 1000W
Reducer	Shimpo/ ASG From Japan
Liner guider system	Taiwan HIWIN
Rack gear transmission	YYC Precision double rack drive
Electric component	made in France
Weight	3700Kgs
Big safety cover	Optional
Add Tube cutter	Optional

Stretched Aluminum Beam
Tenon-and-Mortise Joint infra-structure
Dual Automatic Centering Electric Chucks
Dual Automatic Centering Electric Chucks
Controler
Working Process & Sample

---
