| US$59,513.00-62,459.00 | 1 Set (MOQ) |

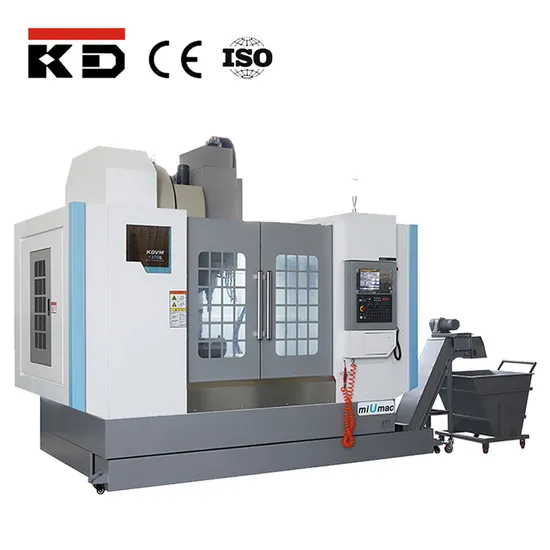

| MODELS | KDVM1370L |
| TRAVEL | |
| X axis | 1300mm |
| Y axis | 700mm |
| Z axis | 650mm |
| Spindle center to column | 785mm |
| Spindle end to table | 150-800mm |
| TABLE | |
| Tablesize | 1400×710mm |
| T-slot(width×number×space) | 18mm×5×152.5mm |
| Max.table loading | 1000kg |
| SPINDLE | |
| Taper bore of spindle | BT50 |
| Spindle power | 15/18.5kw |
| Spindle speed | 6000rpm |
| FEED | 10 |
| X/Y/Z fast travel speed | 10/ 16/ 12m/min |
| Torque axis motors | 22/ 22/ 22Nm |
| ATC | |
| Tool number | 24 |
| Max. tool size (With adjacent tool) | Ф105mm |
| Max. tool size (Without adjacent tool) | Ф220mm |
| Max.tool length | 350mm |
| Max.tool weight | 15kg |
| Time (tool-tool) | 2.5s |
| ACCURACY | |
| Repeatability precision for X/Y/Z | ≤0.008mm |
| Min.Input | 0.001mm |
| OTHERS | |
| Overall dimension (LxWxH) with auto conveyor | 3500x3390x2865mm |
| Net weight | 12000kg |
