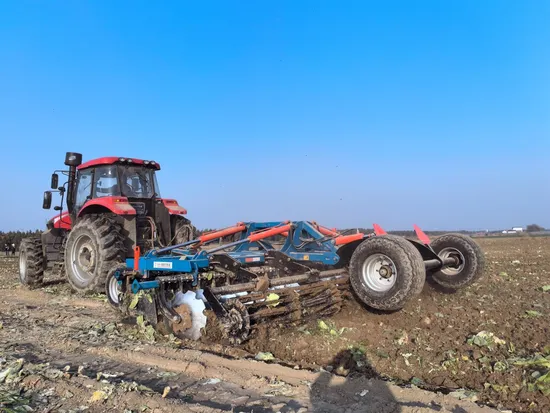

Agriculture Disc Harrow for Efficient Speed Tilling

Product Description

The 1BZM Series speed tiller features a strong square tube steel frame.The disc gangs are mounted with clamps that can be loosened to allow for lateral movement of the disc gang to suit the farmer's needs on spacing and alignment.
Disc bearings are high quality,greaseless and maintenance free.Rubber stock placed inside the disc arm clamps allow for a cushioned movement of the disc arm to prevent damage to the disc or disc arm during operation.Two sets of crumble rollers are fitted and covering discs attached to prevent furrows.The roller frame is attached to the main frame via a specially formulated high viscosity themolplastic nylon bushing for long life and wear resistance.It can efficiently cut,size and incorporate high levels of crop residue increasing the carbon content in your soil.Soil erosion from wind and water is drastically reduced by the Supa Till's excellent incorporation ability. Product characteristics Matching power:200-300 horsepower tractor,working width 4.5m-5.5m
With the maximum working depth up to 12-18cm, it can replace the plough to perfrm the first cultivation on the light soil and cultivated land.
Two-row notched blades,with the diameter of 610/650mm, thickness of 6mm
High-strength steel with sturdy structure.
Double-row tapered roller bearing with four seals utilizedmakes the service life 4-5times longer than that of the ordinary agricultural bearings.
Double-row tapered roller bearing with four seals utilizedmakes the service life 4-5times longer than that of the ordinary agricultural bearings.
Technical parameter

Item	unit
Mode		1BZM-4.5	1BZM-5.0	1BZM-5.5
Disc No.	pcs	34	38	42
Working width	mm	4500	5000	5000
Working depth	cm	15-18	15-18	15-18
Space	mm	250	250	250
Disc Size	mm	610/660	610/660	610/660
Approx. net wetgth	kg	4200	4400	4650
Matched power	hp	180-200	200-220	220-240

Company Profile
Xuzhou Zhongyang Agri Machinery Co., Ltd. Was founded in March 2018. It ia new company of Xuzhou
Kaicheng Machinery Co., Ltd. As a professional manufacturer and trading enterprise. We have about 70
employees, and our core industries include agricultural machinery disc harrows, disc ploughs, combined land
preparation machines, disc blades, trailers, planters and tractors. Agricultural machinery disc harrows working
wide include 1.8m to 7.5m heavy duty disc harrows, extra heavy duty disc harrow 710 series and 910 series,
middle duty disc harrows working width from 2.0m to 8m, light duty disc harrow from 3.6m to 7m, The matched
power from 30HP to 530HP. We also provide all kinds of implements for farms. We are located in Chinese
construction core industry base. Our products have the advantages of low cost and good quality, and are well
received by customers at home and abroad. More than 15 years of experiences, professional and constantly
innovation, professional producing line, every serious careful assembly workers, we ensure every product that
we produce has very reliable quality and stability. Now, you can see "Lishi brand agriculture working in Australia,
Africa, Europe, South America, central Asia more than 40 countries. Sincerely looking forward to provide you with
the most comprehensive field solutions and the most perfect products and services in the most crucial time.

Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time?
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time.
Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc.

---
