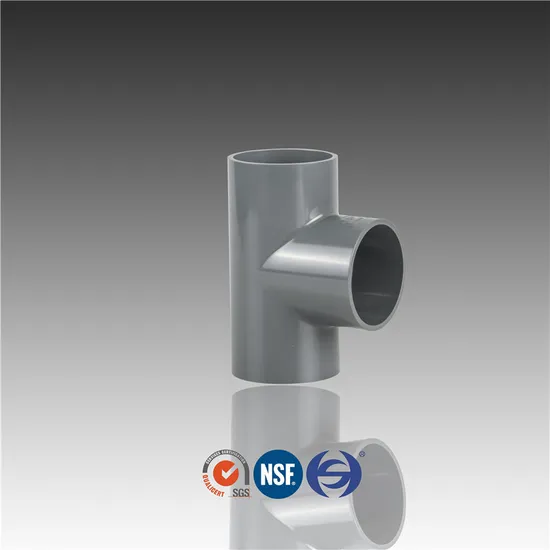

PVC Plastic Pipe Tee with High Pressure Fittings

Product Description

COMPANY PROFILE
Huasheng Pipeline Technology Co.,Ltd was founded in 1988 ,which specialized in moulding, Precision injection, UPVC,CPVC ,PPH, PVDF,HDPE pipe, fittings and Valves in DIN, ISO, ASTM,JIS standards on water supply and industry with ,CE,ISO,SGS,NSF etc certificates.

- More than 20 advanced Extrusion machines for production of PVC pipes, and 170 Injection machine for fittings
- Over 33 years' experience in Injection and Moulding
- Various plastic material for different application,UPVC,CPVC,PE,HDPE,PPH,PVDF...
- Offering full range of pvc pipes and fittings for water supply and industry in China
- Perfect QC management system,daily QC report, daily QC meeting, QC staff assessment
Description:

Description:
Items Name	PVC Reducing Tee PN10
Material	Polyvinyl chloride
Size	20~400 mm
Color	Grey Colour Or as you request
connection	Socket
Pressure	( Dn <160 ) ≥PN12,5 ( under 1000 hours )
	( Dn ≥160 ) ≥PN10 ( under 1000 hours )
Standard	DIN8063
Certification	CE,ISO14001,SGS,ISO9001

Advantages
1).Light weight
2).Resistant to chemical fertilizers and herbicides
3).Non toxic and odorless
4).Simple and reliable installation
5).Easier construction,lower cost(33% less).
6).Up to 50 years' durabillity
7).Smooth interior structure,low friction losses
8).Easy maintenance.

PVC Tee PN10,DIN8063
Size(De)	Dimension(mm)
	D0	D1	D2	d	T	H1	H	L
20	24.80	20.24	19.96	19.00	17.00	28.50	40.90	57.00
25	30.10	25.24	24.95	24.00	19.50	33.50	48.55	67.00
32	37.50	32.25	31.95	31.00	23.00	40.50	59.25	81.00
40	46.48	40.28	39.95	39.00	27.00	48.50	71.74	95.60
50	57.30	50.33	49.94	49.00	32.00	58.50	87.15	117.50
63	70.50	63.34	62.93	62.00	38.50	71.50	106.75	142.70
75	84.00	75.35	74.93	73.50	44.50	83.25	125.25	166.50
90	100.60	90.38	89.93	88.50	52.00	98.25	148.55	203.00
110	120.80	110.42	109.92	108.00	62.00	118.00	178.40	237.00
125	136.80	125.52	124.93	123.00	69.50	118.50	186.90	267.00
140	153.50	140.58	139.88	138.00	77.00	149.00	225.75	298.00
160	175.00	160.62	159.87	158.00	87.00	169.00	256.50	338.50
180	202.60	180.81	179.91	178.50	97.00	190.00	291.30	379.00
200	219.00	200.90	199.85	197.00	107.00	211.00	320.50	420.00
225	246.00	226.02	224.83	221.00	119.50	235.50	358.50	474.00
250	272.00	251.15	249.41	247.00	132.00	261.00	397.00	522.00
280	314.80	281.46	280.16	278.00	147.00	276.00	433.40	552.00
315	344.50	316.55	315.05	312.00	165.00	326.50	498.75	653.00
355	385.80	356.63	355.03	326.00	183.50	368.25	561.15	736.50
400	433.70	401.60	400.00	398.50	208.00	413.00	629.85	826.00
Packing List
Description	Size	Pcs/ctn	Weight (g/pcs)	Length (cm)	Width (cm)	Height (cm)
Tee	De20	480	17.60	43.5	31	30
	De25	300	30.80	43.5	31	30
	De32	150	48.40	43.5	31	30
	De40	180	83.60	53	38	35.5
	De50	108	140.80	53	38	38
	De63	50	242.00	53	38	31.5
	De75	32	382.80	53	38	35.5
	De90	28	699.60	57	40	43
	De110	18	968.00	57	40	49.5
	De125	16	1399.20	59	42	55
	De140	10	1848.00	49	39.5	61
	De160	4	2794.00	53	38	35.5
	De180	4	4752.00	57	42	43
	De200	4	5786.00	66	45.5	43.5
	De225	2	7062.00	57	40	49.5
	De250	2	9603.00	59	42	55
	De280	1	16742.00	47.5	33	61
	De315	1	18249.00	51	36	67
	De355	1	23727.00	58	41	76
	De400	1	31174.00	64	45.5	84.5

---
