Ribbon Blender Horizontal Coffee Powder Mixer

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.

DH-JD-500

Application

Powder, Powder

Application Area

Food

Certification

Condition

New

Stirring Type

Spiral

Working

Shear Mixer

Name

Ribbon Blender Horizontal Coffee Powder Mixer

Mixer Type

Powder Mixer

Layout Type

Horizontal

Mixing Drum Shape

Circular Groove

Operating type

Continuous Operating

Warranty

1 Year

Transport Package

Plywood Wooden Carton

Specification

Trademark

DAHEPACK

Origin

China

HS Code

84743900

Production Capacity

30units/Month

Product Description

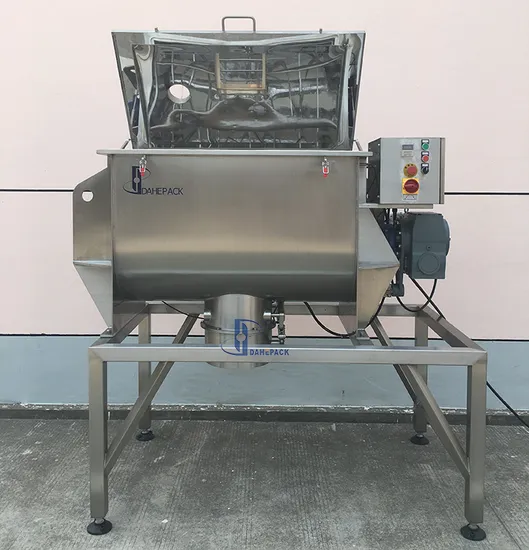

Ribbon Blender Horizontal Coffee Powder Mixer
Introduction:
This is Ribbon Blender Horizontal Coffee Powder Mixer, designed to mix all kinds of dry powder .It consists of one U-shaped horizontal mixing tank and two groups of mixing ribbon: outer ribbon displace the poweder from the end to the center and inner ribbon move the powder from the center to the ends .This counter-current action results in homogeneous mixing!
Standard Specifications:

Model	DH-JD-200	DH-JD-300	DH-JD-500	DH-JD-1000	DH-JD-1500	DH-JD-2000
Full Volume	200L	300L	500L	1000L	1500L	2000L
Turning Speed	46rpm	46rpm	46rpm	46rpm	46rpm	46rpm
Mixing Vessel	3mm	3mm	3mm	4mm	5mm	6mm
Wall Plate	6mm	8mm	8mm	8mm	8mm	12mm
Main Shaft	57*6	76*6	76*8	89*8	102*8	114*10
Mixing Blade	6mm	6mm	6mm	8mm	10mm	12mm
Whole Length	1400	1530	1700	2000	2400	2600
Whole Width	900	1000	1200	1300	1400	1500
Total Height	1450	1550	1700	1960	2050	2200
Total Weight	250KGS	350KGS	500KGS	700KGS	1000KGS	1300KGS
Total Power	4KW	5.5KW	7.5KW	11KW	15KW	22KW
Air Consumption	4-6Bars
Power Supply	3 P AC208-415V 50/60HZ

Factory
Ribbon Blender Horizontal Coffee Powder Mixer
