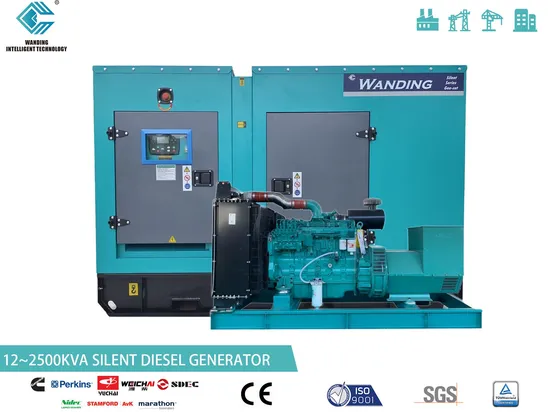

30kw-150kw 37.5kVA-187kVA Cummins Power Generators Power Plant Factory Price with Marathon/Leroy-Somer Alternator

Product Description

About Us
Hunan Wanding Intelligent Technology Co.,Ltd
Hunan Wanding Intelligent Technology Co., Ltd. was established in 2019. its affiliated unit is [Changsha Wanding Electromechanical Equipment Co., Ltd.] established in 2009.

25 years we only focus on one thing - to bring the most worry-free solutions for customers who need electricity, not just the production and sales of diesel generator sets, as the largest genset factory in central China our company is a manufacture integrating design, manufacturing, installation, environmental protection and noise reduction, sales and technical services..
With modern production technology, excellent manufacturing technology, perfect quality management system, and professional after-sales service team, We have received accolades from customers all over the world.
Powered by Cummins ENGINE
Excellent overall configuration, with lighter weight and more compact structure.
Integral all-steel piston design, high-strength material cylinder block and crankshaft,harsh parts test verification, higher engine strength.
Three-stage fuel filter ensures a balanced level of particle dispersion, protecting key fuel system components and maximizing engine life.
The electronic control system can switch the working mode intelligently according to the environment and operating conditions
Excellent quality, low fuel consumption, low noise, high output power and reliable performance.
Product Parameters

WANDING DCEC CUMMINS series main technical parameter list (T2)
DCEC CUMMINS series	Unit power KW/KVA	Diesel model	Diesel power prime/stand-by KW	Number of cylinder	Bore*Stroke	Compression ratio	Minimum Fuel Extinction Rate g/(kW.h)	Diesel engine form	Weight (kg)	Unit Dimensions (mm)
WD-22	20/25	4B3. 9-G2	24/27	4	102*120	18:1	205	Vertical, in-line, water-cooled, four-stroke	800	1800*740*1300
WD-33	30/37.5	4BT3.9-G2	36/40	4	102*120	18:1	205		800	1900*740*1300
WD-50	40/50	4BTA3.9-G2	50/55	4	102*120	17.3:1	205		800	1900*74*1300
WD-55	50/62.5	4BTA3.9-G2	58/64	4	102*120	17.3:1	205		800	1900*740*1300
WD-80	75/93.75	6BT5.9-G2	86/92	6	102*120	17.3:1	205		1040	2250*800*1300
WD-88	80/100	6BT5.9-G2	96/106	6	102*120	17.3:1	205		1040	2250*80S1300
WD-100	90/112.5	6BTA5.9-G2	106/116	6	102*120	17.3:1	205		1060	2350*800*1300
WD-120	100/125	6BTAA6.9-G2	120/130	6	102*120	17.3:1	205		1100	2450*810*1345
WD-160	150/187.5	6CTA8.3-G2	163/180	6	114*135	17.3:1	205		1450	2450*840*1453
WD-180	160/200	6CTAA8.3-G2	183/203	6	114*135	18:1	205		1800	2550*960*1492
WD-220	200/250	6LTAA8.9-G2	220/240	6	114*145	16.6:1	205		2000	2650*960*1632
WD-300	275/343.75	6LTAA9. 5-G1	310/320	6	116. 5*148	16.6:1	205		2500	2850*1100*1800
WD-320	300/375	QSZ13-C6	328/374	6	130*163	17:1	205		2600	3000*1100*1800
WD-320	300/375	6ZTAA13-G3	340/380	6	130*163	17:1	205		2800	3000*1100*1800
WD-350	320/400	6ZTAA13-G2	390/415	6	130*163	17:1	205		3000	3100*1200*1800
WD-350	320/400	QSZ13-G7	367/419	6	130*163	17:1	205		3000	3100*1200*1800
WD-400	360/450	QSZ13-G2	400/440	6	130*163	17:1	205		3650	3300*1300*1900
WD-400	360/450	QSZ13-G5	411/470	6	130*163	17:1	205		3650	3300*1300*1900
WD-440	400/500	QSZ13-G3	450/470	6	130*163	17:1	205		3850	3300*1300*1900
WD-450	400/500	QSZ13-G10	463/509	6	130*163	17:1	205		4000	3500*1400*1900
WD-500	450/562.5	QSZ13-G11	513/563. 6	6	130*163	17:1	205		4000	3500*1500*2000

Optional appearance
Detailed Pictures
Optional Alternator
Alternators of brands such as Leroy somer, Marathon, and St/amford are optional, and Chinese-made alternators such as WANDING are also optional.Cover voltage 400V, 690V, 10500V.
Customizable options Overseas project picture Other recommended series
Our Certificate
Our Office FAQ Q: How to get a quote?A: Please click the inquiry button to have one of our staff contact you and get the latest catalog and promotion information! Q: What kind of customization service do you support?A: All aspects of the machine can be customized, open type, super silent type, container, mobile trailer are all available, please contact our sales staff to let us know your needs. Q: What is the after-sales service policy ?A: We have 160+ after-sales service stations overseas, we can provide you with after-sales service and technical consultation at any time, contact our staff for more information. Q: Where is your factory located? Can I have a factory visit?A: Our factory is located in Construction Machinery Supporting Industrial Park, Bishi Town, Yueyang City, Hunan Province, China WANDING factory always welcomes customers from all over the world, we will provide the most dedicated service.
Q: How to choose a suitable diesel generator set?A: Welcome to contact our sales staff, we will analyze your needs and match the corresponding technical team to communicate together, don't worry, there are more than one solution, you can choose them freely.
Sales Promise: Wanding Genset offers a full line of new, high quality products. Each unit undergoes rigorous factory testing.

Warranty: Under our standard terms: one year from the time you receive the goods, or 1000 hours of running (whichever comes first).
Service and parts are available from Wanding Genset or from your local dealer.

Technical Consulting Service: 7X24 hours online technical service consultation and highly customized service are supported.

For individual users: inquiries welcome! Don't know about diesel generator sets? No need to worry! Once purchased, free technical consultation for life.
For dealers: inquiries welcome! Get the best dealer exclusive price and service, we offer free brand customization.

---
