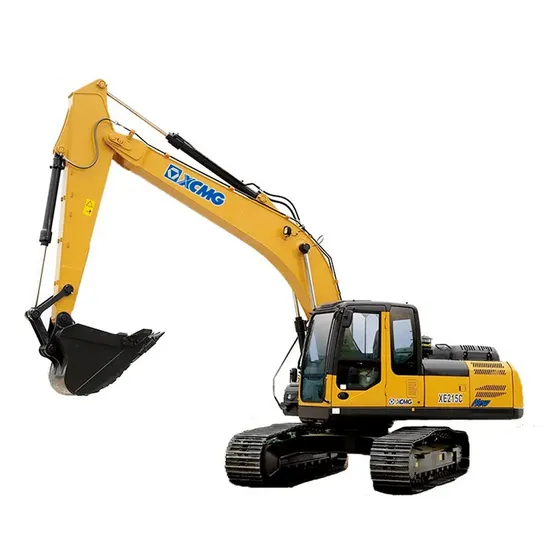

Reliable 21.5 Ton Hydraulic Boom Excavator Xe215c Model

Product Description

Product Description
XE215C is has features of good flexibility and maneuverability, low fuel consumption, high construction efficiency, large digging force, comfortable driving environment and wide range of application. It suitable for earth and stone construction projects such as municipal construction, highway bridges, housing construction, road engineering, farmland water conservancy construction, port construction and so on.
*High-end configuration·Excellent performance
XE215C is suitable for earth and stone construction projects such as municipal construction, highway bridges, housing construction, road engineering, farmland water conservancy construction, port construction and so on, it has features of good flexibility and maneuverability, low fuel consumption, high construction efficiency.
*New generation·Environmental·Energy-saving·Large power engine
New generation environmental engine is adopted in this machine, which has both excellent environmental performance and large power, matched with ow fuel consumption design, operating costs are significantly reduced.
Product Parameters

Model	Parameters
Output power	128.5/2100 kW/rpm
Torque/speed	637/1800 N.m/rpm
Displacement	6.494 L
Operation Weight	21900 kg
Bucket Capacity	0.9-1.0 m ³
Travel speed(H/L)	5.5/3.3 km/h
Rotating speed	13.3 r/min
Gradeability	≤35°
Ground pressure	47.2 kPa
Bucket digging force	149 kN
Arm digging force	111 kN
Maximum traction	184 kN
Overall dimensions(L*W*H)	9625×2990×3100 mm
Width of platform	2830 mm
Length of crawler	4225 mm
Overall width of chassis	2990 mm
Width of chassis	600 mm
Track length on ground	3462 mm
Crawler gauge	2390 mm
Clearance under counterweight	1050 mm
Min. ground clearance	485 mm
Min. tail swing radius	2890 mm
Max. digging height	9620 mm
Max. dumping height	6780 mm
Max. digging depth	6680 mm
Excavation depth of 8 feet level	6500 mm
Max. vertical wall digging depth	5715 mm
Max. digging reach	9940 mm
Min. swing radius	3530 mm
