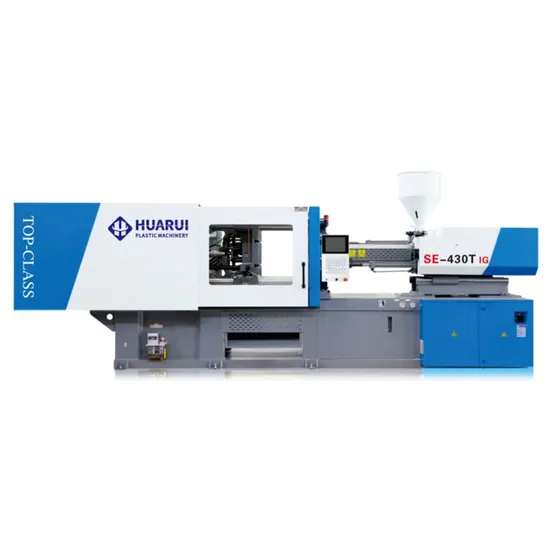

Full Automatic Horizontal Injection Molding Machine 430 Ton for Plastic Turnover Box

Product Description

Automatic Plastic Molded Chair Making Machine Injection Blow Mold Moulding Machine
Product Parameters

Se-430T/IG Plastic Injection Molding Machine Information
Item		Unit		A			B
Screw diameter		mm		90			95
Theoretical shot volume		cm³		2640			2942
Shot weight (PS)		g		3564			3972
Shot weight (PS)		oz		1927			2148
Length/Diameter ratio		L/D		19.6			18.5
Injection pressure		Bar		1283			1152
Injection rate		cm³/sec		727			810
Max.screw speed		rpm		180
Clamping force		KN		4300
Max.daylight		mm		1100*1070
Open stroke		mm		760
Space Between Tie-bars		mm		770*720
Min mould dimension		mm		280
Mould thickness range		mm		800
Ejector force		KN		120
Ejector stroke		mm		220
No.of ejector pins		unit		13
Max.motor power		KW		61
System pressure		MPa		175
Heater input power		KW		36
Oil filling capacity		L		500
Machine size		M		8.0*2.0*2.7
Net weight		KG		17000

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
Detailed Photos
