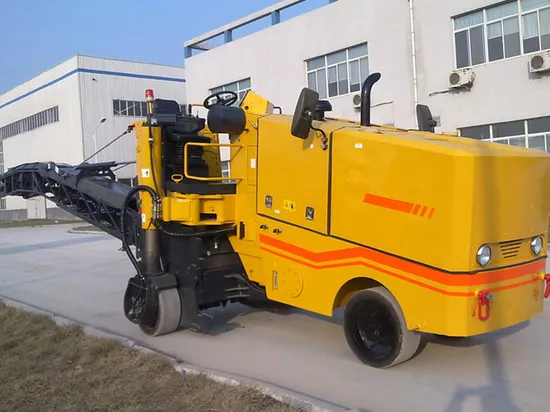

Chinese Top Brand Hot Sale Cold Milling Machine SM100T-3 with Factory Price for Sale
Drive system
103kW power works with 6.6t operating weight to achieve powerful operating capacity and good working condition adaptability.
High traction force and powerful large-depth milling capability.
The optimized cutter arrangement and excellent manufacturing accuracy guarantee low operating vibration of machine.
| Parameter name | SM100MT-3 (Standard version) |
| Performance parameters | |
| Operating weight (Kg) | 15200 |
| Transport weight(Kg) | 14500 |
| Maximum milling width (mm) | 1000 |
| Maximum milling depth (mm) | 300 |
| Engine | |
| Engine model | SC9D |
| Rated power/rated speed (kW/rpm) | 160/2200 |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 12210*2385*2545 |
| Driving performance | |
| Traveling speed (km/h) | 0-8 |
| Working speed (m/min) | 0-30 |
| Conveyor System | |
| Width of conveyor belt (mm) | 500 |
| Swing angle of conveyer (Rightward/leftward) (°) | 25/20 |
| Tank capacity | |
| Fuel tank (L) | 540 |
| Working device | |
| Number of milling cutters (Piece) | 94 |
