HDPE Container Pet PVC Bottle PE Film PP Woven Bag Plastic Glass Rubber Tire Crushing Crusher Pulverizer Machine Recycling Shredder Equipment Machinery

Product Description

Performance and Features

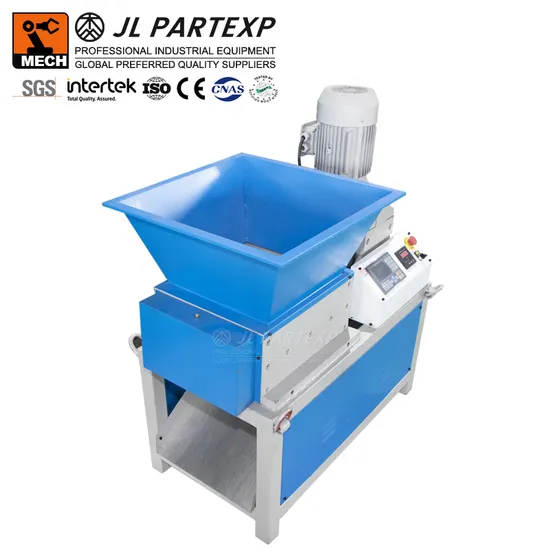

This small shredder is driven by a hard tooth surface reducer, and the blade is made of high-strength alloy steel, which has the characteristics of strong wear resistance and high strength. bite and other functions. It is suitable for the refinement of various domestic wastes, and the discharge size is about 10 mm. It has the advantages of large output, low power and low noise. Machine size and discharge granularity can be designed according to the materials crushed by customers.

Main body of the shredder
The main body of the equipment adopts Q plate welding to eliminate stress treatment/integral processing, and strengthen the stability of the equipment under heavy load for a long time.
Moving knife/fixed knife
The material of the moving knife is made of alloy tool steel forging, precision machining, multiple heat treatment and low temperature freezing heat treatment, the overall toughness and hardness are consistent and can be used repeatedly, increasing cutting performance and service life. The fixed knife is installed with a hook, which optimizes the tool change function and makes tool maintenance and change efficient.
Cutter shaft
It is processed and refined with heavy-duty steel, and reasonably cooperates with the cutter to provide powerful power for cutting.
Seal
The bearing seat adopts a split and detachable type, which can remove moving knives, fixed knives, bearings and other components, and is easy to maintain and change knives. The sealing structure blocks the contact of broken objects and grease, and can also protect bearings and seals when handling liquid materials. gears etc.
High-efficiency motor reducer
Use energy-efficient standard motors, excellent standard products, and carry out load tests before leaving the factory to ensure the stability of the power system.
Multiple protection system
The shredding system has multiple protections for machinery and electrical appliances. It is equipped with main motor start protection, automatic feeding overload, motor card overload, automatic reverse and re-distribution of materials to be shredded (adjustable reverse times). Noise reduction and dust reduction measures are taken into consideration in the design project, and the external noise and dust are reduced as much as possible. The noise of the equipment operating point is ≤85(DB)A.
Main Technical Parameters

model	Cutting chamber	Blade diameter(mm)	Blade thickness(mm)	Number of blades	motor	Blade material
JL-500	500*500mm	250mm	20mm	25pcs	7.5KW+7.5KW	9CrSi/SKD11/D2
JL-600	600*400mm	200mm	20mm	30pcs	11KW+11KW	9CrSi/SKD11/D2
JL-800	800*600mm	300mm	20mm	40pcs	18.5KW+18.5KW	9CrSi/SKD11/D2
JL-1000	1000*600mm	300mm	20mm	50pcs	22KW+22KW	9CrSi/SKD11/D2
JL-1200	1200*600mm	300mm	30mm	40pcs	30KW+30KW	9CrSi/SKD11/D2
JL-1200	1200*800mm	400mm	50mm	24pcs	30KW+30KW	9CrSi/SKD11/D2
JL-1600	1600*1000mm	500mm	50mm	32pcs	45KW+45KW	9CrSi/SKD11/D2
JL-1800	1800*1200mm	600mm	60mm	30pcs	55KW+55KW	9CrSi/SKD11/D2
In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials,output size,capacity,Capacity requirements,etc.) and attach your contact information(such as phone number,e-mail,facebook,whatsapp,wechat,etc.)

It can crush a variety of waste materials such as: straw, wood, logs, coconut shells, cardboard, rubber tires, metal, automobiles, bicycles, bumpers, hard drives, mobile phones, computers, circuit boards, chips, copper pipes, cables, aluminum products, Cans, paint buckets, milk cans, PP/PVC/PE/ABS plastics, plastic bottles, plastic boxes, plastic bags, plastic films, foam, latex, animal bones, animal carcasses, compost, etc.,
No pollution, uniform particles, no dust, no waste of raw materials
You can tell us the raw materials that need to be crushed, and we will provide you with professional customized services! >>>

Factory introduction
We are a collection of scientific and technological research and production company,specialize in shredder machine ,import and export business the professional manufacturer.
Our main products:Single shaft shredder machine,small shredder,Double shaft shredder,kitchen waste shredder,metal shredder,rubber and tire shredder,plastic shredder,wood shredder,cans shredder,cars shredder,woven bag shredder,film shredder,crusher etc.
Our company has a professional technical team of engineers for shredder machine research and design, machining, assembling, repairing.
We always insist the principle of "Quality First,Reputation first" to provide best service .We ask for "Pragmatic and honest", to be a responsible company. We hope to establish a long term relationship with you. We sincerely hope we can build good future,hand in hand.

---
