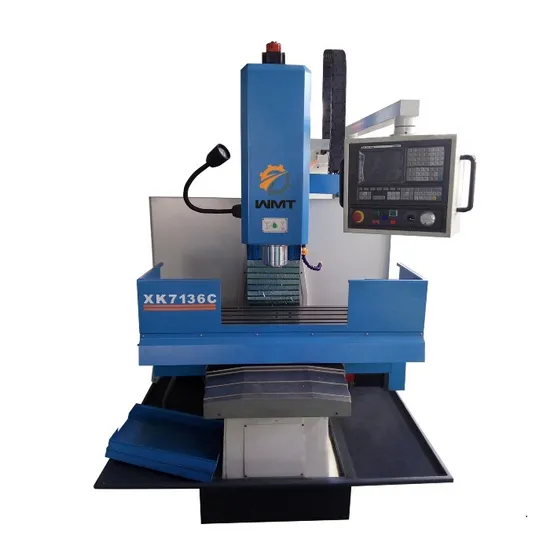

High quality 3 axis XK7136C auto tool change cnc milling machine for sale with CE

Product Description

Features:
Main unit type is used in the main axle and the standard of the knife handle is BT40/NT40, servo motor and numerical control motor are used in the working table. Three axle linkages are adopted to meet the processing accuracy requirements. This lathe is suitable for semi-automatic processing such as: drilling , tapping, chamfering, bearing, milling face thread, handle and tower and other processes in the batch production and fitted for the many work pieces and multi-machine management.
The machine main structure has high rigidity, Y/Z axes adopt rectangular guide way, X axes adopt swallowtail guide way . The table surface and the guide ways are hardened.
The machine is lubricated by the automatic lubrication mechanism.
X,Y,Z axes adopt ball screw, low speed feed without crawl and high precision.
The spindle realizes the automatic infinitely variable speed by the way of motor.
With functions of tool self-lock.

Main Technical Data:

Specification	XK7136C
Main motor power	5.5kw
Highest spindle speed	8000rpm
X/Y/Z to the motor torque	7.7/7.7/7.7
The spindle taper hole	BT40
Table size	1250x360mm
X/Y/Z axis travel	900x400x500mm
Distance between spindle center and surface column	460mm
The distance of spindle end face to the workbench	100-600mm
Rapid movement(X/Y/Z)	5/5/6m/min
T-slot	3/18/80
Table load	300kgs
Positioning accuracy	0.02mm
Repeat posotioning accuracy	0.01mm
Machine tool appearance size(L x W x H)	2200x1850x2350mm
Net.Weight	2200kgs

---
