Enterprise Network Router Netengine 8000 M8 Integrated Chassis Components

Product Description

Product Description

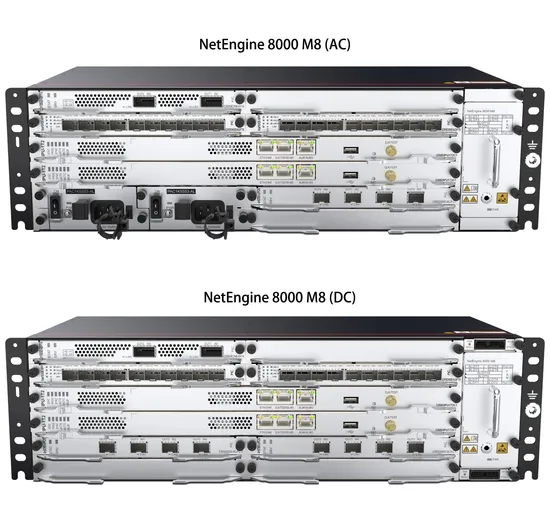

Overview: NetEngine 8000 M8 Integrated Chassis Components

Part Number Model Description 02353EWU CR8BM8BKPAC1 NetEngine 8000 M8 Integrated AC Chassis Components (Including 2*AC Power,Fan Box) 02356CDX CR8BM8BKPAC1 NetEngine 8000 M8-S Integrated AC Chassis Components (Including 2*AC Power,Fan Box) 02353ANP CR8BM8BKPDC1 NetEngine 8000 M8 Integrated DC Chassis Components (Including 2*DC Power,Fan Box) 02356CDA CR8BM8BKPDC1 NetEngine 8000 M8-S Integrated DC Chassis Components (Including 2*DC Power,Fan Box)

Technical Specifications

NE8000 M8 Integrated Chassis Components
Part Number	02353EWU	02356CDX	02353ANP	02356CDA
Model	CR8BM8BKPAC1	CR8BM8BKPAC1	CR8BM8BKPDC1	CR8BM8BKPDC1
Description	NetEngine 8000 M8 Integrated AC Chassis Components (Including 2*AC Power,Fan Box)	NetEngine 8000 M8-S Integrated AC Chassis Components (Including 2*AC Power,Fan Box)	NetEngine 8000 M8 Integrated DC Chassis Components (Including 2*DC Power,Fan Box)	NetEngine 8000 M8-S Integrated DC Chassis Components (Including 2*DC Power,Fan Box)
Height x Wide x Depth	13.26cm (3U) x 44.2cm x 22cm
Weight with packaging [kg(lb)]	9.2 kg (20.28 lb) 11.3 kg (24.91 lb)
Weight without packaging (full configuration) [kg(lb)]	[IPU-480/IPU-480-B/IPU-480-BN]DC:16.5 kg (36.38 lb) [IPU-480/IPU-480-B/IPU-480-BN]AC:17.1kg(37.71 lb) [IPU-1T2/IPU-1T2-B]DC:16.5 kg (36.38 lb) [IPU-1T2/IPU-1T2-B]AC:17.1kg(37.71 lb)
Weight without packaging [kg(lb)]	5.7 kg (12.57 lb) 7.8 kg (17.2 lb)
Weight with packaging (full configuration) [kg(lb)]	[IPU-480/IPU-480-B/IPU-480-BN]DC:20.0 kg (44.09 lb) [IPU-480/IPU-480-B/IPU-480-BN]AC:20.6kg(45.42 lb) [IPU-1T2/IPU-1T2-B]DC:20.0 kg (44.09 lb) [IPU-1T2/IPU-1T2-B]AC:20.6kg(45.42 lb)
Typical power consumption (with configuration) [W]	[IPU-480/IPU-480-B/IPU-480-BN]DC: 2*IPU+1*fan+2*DC power+2*CR5D0E5XMF94+2*CR5D00LAXF91+2*CR5D00EAGF95=428.11 W [IPU-1T2/IPU-1T2-B]DC: 2*IPU+1*fan+2*DC power+2*CR5D0E5XMF94+1*CR5D00E4XM25+2*CR5D00LAXF91+2*CR5D00EAGF95=484.34 W [IPU-480/IPU-480-B/IPU-480-BN]AC: 2*IPU+1*fan+2*AC power+2*CR5D0E5XMF94+2*CR5D00LAXF91+2*CR5D00EAGF95=457.79 W [IPU-1T2/IPU-1T2-B]AC: 2*IPU+1*fan+2*AC power+2*CR5D0E5XMF94+1*CR5D00E4XM25+2*CR5D00LAXF91+1*CR5D00EAGF95=485.27 W
Typical heat dissipation (with configuration) [BTU/hour]	[IPU-480/IPU-480-B/IPU-480-BN]DC: 2*IPU+1*fan+2*DC power+2*CR5D0E5XMF94+2*CR5D00LAXF91+2*CR5D00EAGF95=1350.19 BTU/hour [IPU-480/IPU-480-B/IPU-480-BN]AC: 2*IPU+1*fan+2*AC power+2*CR5D0E5XMF94+2*CR5D00LAXF91+2*CR5D00EAGF95=1443.77 BTU/hour [IPU-1T2/IPU-1T2-B]DC: 2*IPU+1*fan+2*DC power+2*CR5D0E5XMF94+1*CR5D00E4XM25+2*CR5D00LAXF91+2*CR5D00EAGF95=1532.61 BTU/hour [IPU-1T2/IPU-1T2-B]AC: 2*IPU+1*fan+2*AC power+2*CR5D0E5XMF94+1*CR5D00E4XM25+2*CR5D00LAXF91+1*CR5D00EAGF95=1532.91 BTU/hour
Heat dissipation mode	Air cooling
Power supply mode	DC, AC
Input voltage range [V]	DC: -40 V to -72 V AC: 90 V to 290 V
Rated input voltage [V]	DC: -48 V/-60 V AC: 200V to 240V/100V to 127V dual live wires, support 240V HVDC
Maximum input current [A]	DC: 40A AC: 10A
Rated output power [W]	DC: 1600W AC: 1500W
Number of slots	DC: 13 AC: 11
Number of service board slots	DC: 8 AC: 6
Switching capacity [bps,bit/s]	IPU-240/IPU-240-B:480 Gbit/s IPU-480/IPU-480-B/IPU-480-BN:960 Gbit/s IPU-1T2/IPU-1T2-B:2.4 Tbit/s
Redundant IPUs	1:1
Redundant fans	1+1. Short-term running when a single fan becomes invalid at the ambient temperature of 40°C(104°F) (one fan module contains two fans)
Redundant power supply	1+1
Noise at normal temperature (acoustic power) [dB(A)]	< 72 dB (meeting the ETSI 72 dBA standard)
Airflow direction	From left to right
Maximum input cable size	DC: 10mm^2 (0-20m) AC: Standard C13 cable
Front-end circuit breaker/fuse	DC: ≥ 32 A (Based on long-term evolution requirements and site conditions, the recommended current is greater than or equal to 40 A.) AC: ≥10 A
Long-term operating temperature [°C(°F)]	DC: -40°C to +65°C (-40°F to +149°F), startup: ≥ -20°C (-4°F) AC: -20°C to +55°C (-4°F to +131°F)
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158 °F)
Restriction on the operating temperature variation rate [°C(°F)]	≤ 0.5°C/min (32.9°F/min), non-condensing
Long-term operating relative humidity [RH]	5% RH to 85% RH, non-condensing
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Short-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage altitude [m(ft.)]	< 5000 m (16404.2 ft.)
Long-term operating altitude [m(ft.)]	≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device must decrease by 1°C [1.8°F] for every 220 m [721.78 ft.].)
MTBF [year]	DC: 155.06 AC: 112.71
MTTR [hour]	0.5 hour
Availability	DC: 0.999999632 AC: 0.999999494
Maximum number of electrical ports	DC: IPU-1T2/IPU-1T2-B:80 IPU-480/IPU-480-B/IPU-480-BN:80 IPU-240/IPU-240-B:80
	AC: IPU-1T2/IPU-1T2-B:60 IPU-480/IPU-480-B/IPU-480-BN:60 IPU-240/IPU-240-B:60
Maximum number of 100GE ports	DC: IPU-1T2/IPU-1T2-B:12 IPU-480/IPU-480-B/IPU-480-BN:4 IPU-240/IPU-240-B:2
	AC: IPU-1T2/IPU-1T2-B:9 IPU-480/IPU-480-B/IPU-480-BN:4 IPU-240/IPU-240-B:2
Maximum number of 40GE ports	DC: IPU-1T2/IPU-1T2-B:12 IPU-480/IPU-480-B/IPU-480-BN:4 IPU-240/IPU-240-B:2
	AC: IPU-1T2/IPU-1T2-B:9 IPU-480/IPU-480-B/IPU-480-BN:4 IPU-240/IPU-240-B:2
Maximum number of 10GE ports	DC: IPU-1T2/IPU-1T2-B:80 IPU-480/IPU-480-B/IPU-480-BN:48 IPU-240/IPU-240-B:24
	AC: IPU-1T2/IPU-1T2-B:60 IPU-480/IPU-480-B/IPU-480-BN:48 IPU-240/IPU-240-B:24
Maximum number of FE ports	DC: IPU-1T2/IPU-1T2-B:160 IPU-480/IPU-480-B/IPU-480-BN:160 IPU-240/IPU-240-B:160
	AC: IPU-1T2/IPU-1T2-B:120 IPU-480/IPU-480-B/IPU-480-BN:120 IPU-240/IPU-240-B:120
Maximum number of physical ports on the entire device	DC: 160 AC: 120
Maximum number of 50GE ports	DC: IPU-1T2/IPU-1T2-B:16 IPU-480/IPU-480-B/IPU-480-BN:8 IPU-240/IPU-240-B:4
	AC: IPU-1T2/IPU-1T2-B:12 IPU-480/IPU-480-B/IPU-480-BN:8 IPU-240/IPU-240-B:4
Maximum number of 25GE ports	DC: IPU-1T2/IPU-1T2-B:32 IPU-480/IPU-480-B/IPU-480-BN:16 IPU-240/IPU-240-B:8
	AC: IPU-1T2/IPU-1T2-B:24 IPU-480/IPU-480-B/IPU-480-BN:16 IPU-240/IPUA-240-B:8
Maximum number of GE ports	DC: IPU-1T2/IPU-1T2-B:160 IPU-480/IPU-480-B/IPU-480-BN:160 IPU-240/IPU-240-B:160
	AC: IPU-1T2/IPU-1T2-B:120 IPU-480/IPU-480-B/IPU-480-BN:120 IPU-240/IPU-240-B:120
