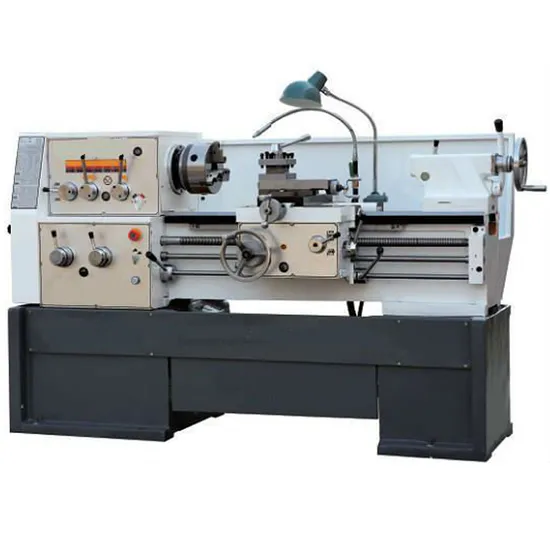

Manual Small Precision Horizontal Metal Gap Bed Lathe Machine

Product Description

Precision Horizontal Metal Gap Bed Lathe Machine
Feature:
The surface between bed and headstock, tailstock and bed , carriage and bed….. scratched by manual, insuring the machine presition and stability. The bed adopts high cast iron mixed with chromium , width of bed 312mm, guideway fired depth is up to 3mm, improving wear resistance and stability Headstock lubrication adopts Cycloidal Pump for recyling lubrication, ensuring headstock cleaning and fast heat spreading , increase the life gear and bearing. Spindle adopts bearing in the brand of WAFANGDIAN , with 52mm spindle bore, gears are with higher hardness and lower voice as adopting precision grinding, Leadscrew is from China famous brand, screw nut adopts high quality bronze alloy ensuring longer life accuracy and resistance-wear.With four way high strength tool post, tool size: 20x20mm

Specification	C6240D
Center height	200mm
Max .Swing over bed	400mm
Max .Swing over carriage	210mm
Max .Swing in gap	560mm
effective gap length	200mm
Max .length of work piece	750mm or 1000mm
Width of bed	310mm
Spindle taper	MT6
Thru-hole spindle	52mm
Spindle speed	30-1600r/min (12steps)
Cross Travel	240mm
Compound Travel	140mm
Tailstock center sleeve travel	90mm
Tailstock center sleeve taper	MT4
Spindle motor	3/4kw
Range of metric thread(kinds)	0.45-20mm (30kinds)
Range of inch thread(kinds)	80-1.75 n/1''
Longitudinal feed per spindle rev.	0.039-1.1mm
Cross feed per spindle rev.	0.018-0.55mm
Overall dimensions for 750mm	2000×1130×1540mm
Overall dimensions for 1000mm	2250×1130×1540mm
Net weight of 750mm	1700kg
Net weight of 1000mm	1800kg

Standard Accessories:
--3-Jaw chuck
--Steady rest
--Follow rest
--Sleeve and center
--Coolant system
--Footbrake system
--Footstand
--Tool box & tools 1 set
--Splash guard
--Oil tray

Optional Accessories:
--Face plate
--DRO
--Quick change tool post
--4-Jaw chuck--Work light
--Live center
--Drill chuck + Drill arbor
--Leadscrew cover
--Chuck cover
--Localizer
--Clutch for feed rob
--Taper turning attachment

---
