High Speed CNC Drilling Machine for Aluminum Profile Process

US$14,999.00
1-4 Pieces
US$14,555.00
5-9 Pieces
US$13,999.00
10+ Pieces

Basic Info.

Model NO.
LZZ6A-13
Structure
Mill Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Number of Shaft
6
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE
Condition
New
Cutting Motor Power
6X1.1kw
Max Drilling Hole Diameter
13mm
Max Distance Between Two Drilling Holes
5000mm
Min Distance Between Each Group Holes
300mm
Workable Size (Lxw)
300X280mm
Drilling Head Feeding Travel
100mm
Max Processing Profiles Section Size
200X250mm
Contour Dimension (Wxhxl)
5500X1300X1900mm
Weight
1000kgs
Application
Drilling Holes
After Service
Online Support
Brand
Tianchen
Advantage
High Productivity
Main Part
Motor
Transport Package
Wrapped in Plastic Film and Fixed on Steel Pallet
Specification
5500*1300*1900mm
Trademark
Tianchen
Origin
Jinan, Shandong, China
HS Code
8461409000
Production Capacity
200 Sets a Year

Product Description

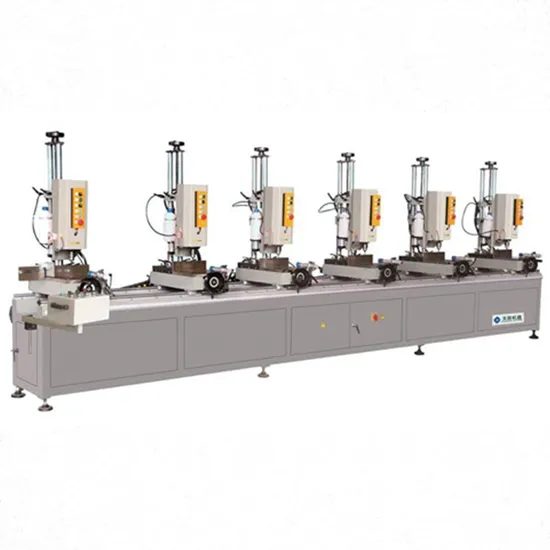

High Speed CNC Drilling Machine for Aluminum Profile Process
LZZ6A-13
Machine Features
1. It is mainly suitable for drilling processing of aluminium windows and doors and curtain wall profiles in mass
production with high efficiency ,which can realize automatic drilling processing by scanning code.With 6 seperate
drilling heads,each of them can have.
2. With 6 seperate drilling heads,each of them can have accurate CNC positioning very quickly.
3. Useing high performance CNC system, any number of the machine heads' combined drilling work altogether can
be realized.
4. Multi-head boring anchor can be fixed to meet multi-holes processing requirement.
5. Feeding System adopts airdraulic-damping cylinder,which ensured smooth feeding.
6. Machine LZZA-13 is manually positioning type.
Technical Parameters
Item Specification
Each Length 3000mm
Each Width 2200mm
Worktable Height 670/870mm
Speed 5~13m/min
Motor Power 0.55kw
