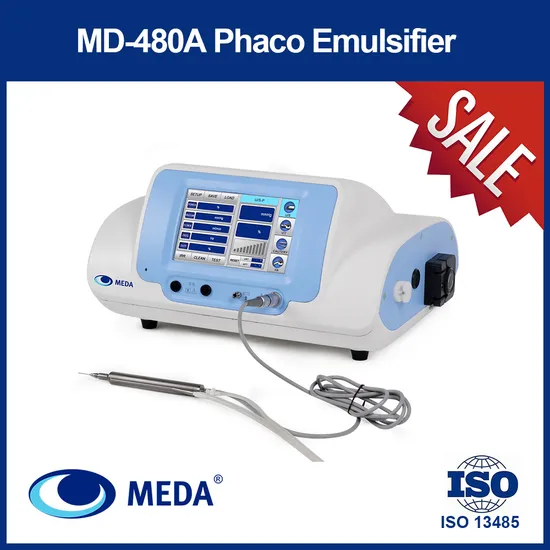

Features All parts of the system are fully monitored and controlled by microprocessor technology Smooth and efficient control of emulsification with digital frequency tracing technology for handpieces Easy operations and user-friendly interfaces with large TFT touch screen and functional menus Up to 10 sets of parameters preset meet different requirements and simplify the surgery operation Automatic test checks tubing and handpiece problems (e.g. blocking or leakage) The peristaltic pump gives full control of aspiration flow rate and prevents anterior chamber from shallowing, giving stronger suction when working under I/A mode Built-in vitrectomy and cautery Intelligent voice reminder Specifications
| Ultrasonic Emulsification (U/S) |
| Frequency: | 40KHz |
| Functional Mode: | Continuance, Pulse, Linear and Burst |
| Continuance: | Emulsifying power range 0~100% |
| Pulse: | Frequency range 1~99Hz |
| Linear: | Emulsifying power linearly controlled by the footswitch, varies between 0~100% |
| Burst: | Burst-stopping time 1.5~0s
Burst-working time 5~100ms |
| Maximum Vacuum: | 500 mmHg |
| Maximum Flux Rate: | 40 ml/min |
| Irrigation/Aspiration (I/A) |
| Flux Rate: | 0~40 ml/min |
| Reflux Rate: | 20 ml/min |
| Maximum Vacuum: | 0~500mmHg |
| Vitrectomy (VIT) |
| Cutting Power Source: | Air Pump |
| Cutting Frequency: | 20~600 cuts/min, or single-cut mode |
| Maximum Vacuum: | 500 mmHg (200Ω) |
| Maximum Flux Rate: | 40 ml/min |
| Cautery |
| Maximum Power: | 10W±20% (200Ω) |
| Type: | Bipolar |
| Power preset between: | 0~100% |
