Product Description
Product Description
Product Description
Product Application

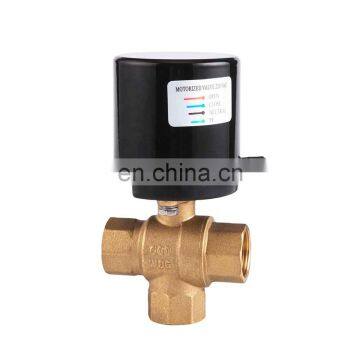

KT100-2/3 series of motorized ball valve is suitable for HVAC and status control of water system. The actuator's using synchronous machine which drives the gears steady.
The new product is to be met the requirement of customers with compact size, large torque, simple operation and free maintenance, convenient for installation under different working conditions. And it has position indicator.
SIZE
| DN15、 DN20、 DN25
|
|
ITEM(2 WAY OR 3 WAY)
| KT100-2-X-220
| KT100-2-X-110
| KT100-2-X-24A
| KT100-2-X-24D
|
Voltage
| AC220V
| AC110V
| AC24V
| DC24V
|
Current
| 0.04A
| 0.08A
| 0.3A
| 0.05A
|
Watts
| 8W
| 8W
| 7W
| 1.5W
|
Torque
| 5Nm
| 5Nm
| 5Nm
| 5Nm
|
Switching time
| 12s/24s
| 12s
| 12s
| 15s
|
Rotate angle
| 90°
|
Working pressure
| ≤1.6Mpa
|
Medium temperature
| -10℃～125℃
|
Valve materal
| BRASS
|
Thread end
| ISO228
|
IP class
| Ip56
|
2 way
3way
CODE
| SIZE
| DIMENISON (mm)
| N.W（g）
|
|
| Rc/G
| A
| B
| C
| D
| E
| ACTUATOR
| VALVE
|
2 WAY
| DN15
| 1/2"
| 58
| 28.75
| 75
| 70
| 116.25
| 535
| 206
|
DN20
| 3/4"
| 67
| 33.75
| 75
| 70
| 124.75
| 535
| 340
|
DN25
| 1"
| 78
| 37.2
| 75
| 70
| 132
| 535
| 495
|
3 WAY
| DN15
| 1/2
| 70
| 30.25
| 75
| 70
| 140
| 535
| 325
|
DN20
| 3/4
| 79
| 33.75
| 75
| 70
| 147.5
| 535
| 405
|
DN25
| 1
| 89
| 38.25
| 75
| 70
| 161
| 535
| 660
|
