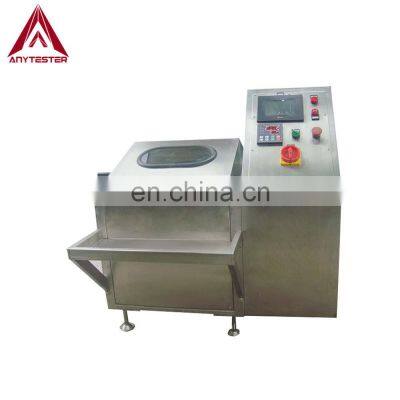

Product DescriptionLaboratory Jig Dyeing MachineAT276 Laboratory Jig Dyeing Machine is special designed for lab normal temperature jig dyeing. It’s applicable to retreatment, bleaching and dyeing of cotton, flax, chemical fiber blending and nylon interweaving. This jig dyeing machine is an ideal solution to cut down the waste of time and invest due to bad dyeing technology. It’s also helping you to develop new dyeing formula.SpecificationModelAT276Operation modeTouch screen operationHeating Methodelectric heating(steam heating optional)Rolling diameterΦ57~200mmRolling width≤500mmSpeed range0~10m/min±0.01m/min, settableTemperature rangeR.T ~ 98℃±2℃Temperature accuracy±2℃Heating Power＜3kwLiquid dosageApprox. 1.8LMachine powerApprox. 3kwPower supply3 Phase 220/380V, 50HzDimensions910×720×1150mmWeightApprox. 180kgDetails and FeaturesThe main body adopts stainless steel material, nice appearance, easy to operate.★Controller: industrial automation components, integrated optimization of process performance, integrated automatic control system with excellent high reliability.★ Operation panel: nice, convenient, simple and intuitional.★Constant cloth speed guarantee: adopts the two-roller mechanical constant-speed technology to basically guarantee the consistent speed of the cloth.★Temperature control: digital display automatic temperature control system, accurately measure and control the temperature of dye liquid in the dyeing tank.★Tension control: adopts two separate synchronous rollers control system, manual preset mechanical synchronization, ensures the system keeping a constant tension.★ Motor: 2 sets of 180w precision control gear motor and 400w frequency converter control systems.★ Dyeing tank: imported SUS304 stainless steel, more durable; trapezoidal structure, small liquid dosage.★ Dye liquid circulation mode: automatic stirring, keep the dye liquid more even.★ Winding cycles: automatically record, can be preset and measured & controlled.★ Direction of rotation: automatically rotate backward and forward according to the cloth length and number of cycles.Our CompanyPacking&DeliveryPacking Packaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protectthe equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.PaymentPayment Term T/TEXW 30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdDelivery Time7~10days after receiving payment for one containerContecting UsTina ZhangWebsiteMobile Phone+8613866784390WhatsApp+8613866784390Skypesales03@anytester.comWechat+8613866784390
>>
