Product Details
Product Description
Product Description

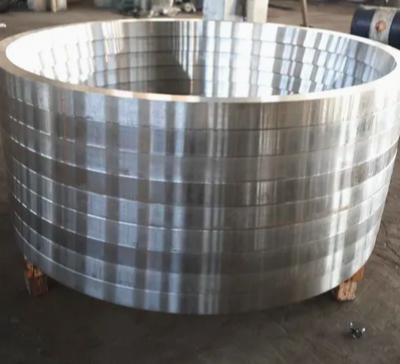

Professional Gear Ring Forged Ring Forging Forged Seamless Rolled Rings sleeve 42CrMo4 Forging Parts Forged Large Ring sleeve
ASTM nickel alloy supper alloy hastelloy C276/X/C-2000/G-35 Forged/Forging ring
Professional Gear Ring Forged Ring Forging Forged Seamless Rolled Rings sleeve 42CrMo4 Forging Parts Forged Large Ring sleeve
The forging process
Bringing steel into shape – the hot forging process
During the forging process, ingots or pre-forged bars are reheated to temperatures near two-thirds of the melting point of steel. This makes the material malleable and allows the forge masters to bring steel into shape.
This process is called thermo-plastic deformation, during which the underlying grain and texture of the material are reformed and lead to unrivalled mechanical properties. The deformation of the material leads to a fine grain structure, leading to a tough and ductile material response.
During the forging process, the material cools down and needs to be reheated, often multiple times for one part. Experienced forge masters can tell by the color of the glow whether the material is still hot enough for processing.
After forging, the material is subject to thermal treatment. This process ensures that the steel is in the right state – ferrite, austenite or martensite, and sometimes even multiple phases (for instance in Duplex who features austenite and ferrite) of them depending on the composition and the required properties. The latter depend on the sequence of heating and cooling and the rates of temperature change – Processes that the producers must master and that require special equipment for different cases and sizes.
Clearly, forging and thermal treatment are complex matters and require years of expertise and mastery to craft a high-quality product. That is why we only work with qualified and audited suppliers!
Professional Forging Hot Forging Parts Non-Standard Processing Mold Forged Sleeve Ring
Professional Gear Ring Forged Ring Forging Forged Seamless Rolled Rings sleeve 42CrMo4 Forging Parts Forged Large Ring sleeve
ING ROLLED FORGING
Ring rolled forging is produced from bar stocked, upset, pierced and ring rolled to meet ID and OD requirements.
Ring rolling is using a ring of smaller diameter, rolling into a precise ring of larger diameter and a reduced cross section. This is accomplished by the use of two rollers, one driven and one idle, acting on either side of the ring’s cross section
Advantages of Ring Rolled Forging:
The forming of the material will impart the ring with a grain orientation that gives it enhanced strength relative to most applications
Common Application:
Casing Connectors;
Gears;
Spacers;
FORGING
It is a hot forming of metal into a required geometry to achieve a desired strength in mechanical properties
Value Added Services:
Customised Chemistry Composition
Induction Hardening
Deep Hole Drilling
Semi-Finish / Finish Machining
Material:
Alloy Steel (4130, 4140, 4145H, 4340, 8630, F22 etc)
Stainless Steel (304, 316/316L, 317/317L, 321 410 439 etc)
Special Steel (Duplex , Super Duplex,
Nickel Alloy, Inconel 600 625 718 Incoloy 800/H 825 926 etc)
Hastelloy C276 C22 B3
Customised Steel Grade to your requirements.
Welcome to discuss it at wechat/whatsapp: +8615000496712
>>
