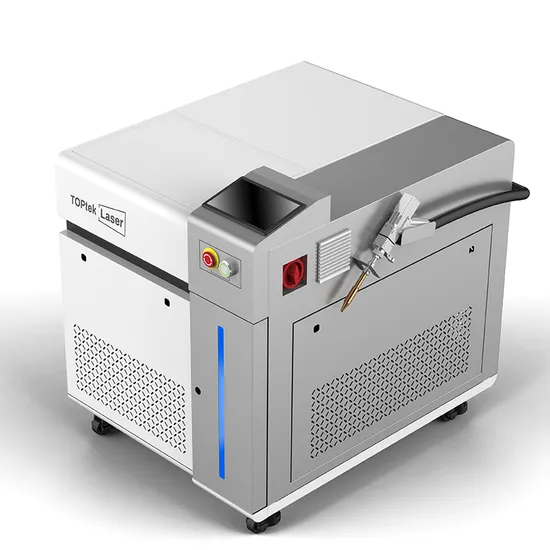

Toptek Laser Portable Handheld Fiber Laser Welding Machine 1500W/2000W/3000W

Product Description

Product Description
Fiber laser welding machine is an advanced welding technology which is a perfect replacement of traditional electric welding, MIG and CO2 welding.
Laser welding process is to melt the connecting area by a very high-energy and dense beam with a large amount of heat. The single module optical fiber laser source provides consistent and stable power and high quality of laser beam. The laser power can be adjusted according to actual production needs. This solution guarantees unparalleled application flexibility and high reliability. After years development, the fiber laser welding technology has been proven a new revolution with features: More cost-saving, easy operation, smooth and invisible welding seam, small deformation, without post-polishing, perfect precision,environmental and operation safety guaranteed.

Detailed Photos
Maxphotonics is currently largest manufacturer of fiber laser sources in the world. Now we chose the latest generation fiber source,protected against beam reflection.The latest model of the resonator achieves ultra-high power output, which translates into optimal performance and excellent weld quality.The photovoltaic conversion efficiency is more than 30%.

1) Professional matching laser welding machine, small size, compatible with cabinets of various manufacturers;
2) A full range of environmentally friendly refrigerant systems;
3) One-button intelligent control, convenient operation, ISO9001 quality management system, fault code query system;
4) Integrated design, convenient maintenance;
5) Stable and reliable performance, low failure rate, energy saving and power saving;

1, Independent research and development of control system, set up more than a security alert, smallerflexible operation,use simple.
2, More stable: all the parameters can be seen, rea-time monitoring machine condition, avoid problemsahead of time, more convenient and solve problems, to ensure stable welding head work.
3, Process: all the parameters can be seen, the welding quality is more perfect, small deformation, high penetration
4. The parameter is stable, high repeatability: determine the state of nozzle air pressure and lenses, as longas the laser power stability, process parameters can be surely heavy summer, Greatly improve the efficiency.

Automatic Wire Feeder
Equipped with Automatic Wire Feeder, Perfect Choice for seam welding.
The system is controlled by microcomputer and driven by stepping reducer motor, with high precision and continuous stability.

Applications

Laser welding is widely used in metal processing industries, and is a very effective method in automatic and robotic manufacturing. It's currently the best and most durable welding solution in sheet welding of stainless steel, carbon steel, galvanized sheet, aluminum, copper, alloy and other metal materials.
Product Parameters

No.	Item	LW-1500W	LW-2000W	LW-3000W
1	Laser Power	1500W	2000W	3000W
2	Laser Wavelength	1070 NM	1070 NM	1070 NM
3	Fiber Cable length	10 meters	10 meters	10 meters
4	Cooling method	Water	Water	Water
5	Positioning method	Red laser dot	Red laser dot	Red laser dot
6	Welding speed	0-160mm/s	0-200mm/s	0-250mm/s
7	Voltage	220V 50/60 HZ	220V 50/60 HZ	380V 50/60 HZ
8	Power consumption	7KW	9KW	13KW
9	Air pressure	5-15L/min	10-15L/min	10-15L/min
10	Currency	40A	40A	40A
11	Scan width	0~6mm	0~6mm	0~8mm
12	Laser gun	motor wobble	motor wobble	motor wobble
13	Focus length	150mm	150mm	150mm
14	Cryogenic water flow	12L/min	12 L/min	12 L/min
15	Chiller's water	Purified water or deionized water
16	Protective gas	Argon gas could meet most of the requirement
17	Welding wire diameter	0.8/1.0/1.2/1.6mm

Certifications

Company Profile
TOPTEK Laser is an innovative high-tech manufacture specializing in handheld laser welding and cleaning solutions. We are committed to providing high-quality machines to make your production smarter, faster and more cost-efficient with minimum human labor required. After decades of development, the company has become a international high-tech enterprise integrating research and development, marketing, production and service.
18 years experienced technical team, advanced technology support from Europe, standardized production management, international marketing and service, all these powerful combination build TOPTEK's rapid development. Until now, our machines were widely used with excellent performance in Europe, North America, Mid-East, Southern East countries. TOPTEK has mastered the core laser technologies such as laser source, numerical control system, precision welding head and precision field mirror system to realize higher precision and faster processing products. For more information, please visit us.
Customer visit
Feedback

Our Advantages
(1)The First TUV certified laser welder company in China
We know the importance of quality, so we spend much time and cost to reach the German TUV standard, to make sure the continuous stability, durability and high precision.
(2)70-80% cost-saving compared with traditional welding
As per real testing in the production, the welding efficiency is 5-10 times time higher, and one green hand can operate it easily to replace 3 experienced worker. Adding other cost, this new technology can save 70-80% cost. All details cost calculation will be available upon receipt of your email request. That is why We strive to make your production smarter, faster and more cost-efficient with minimum human labor required.
(3)Hi-Precision famous Components to guarantee high quality
TOPTEK laser welding machines are equipped only with the superior components that guarantee the reliability and stability during the production. From our components and German design, you can feel our strict and professional work ethics. As a manufacture, we quite understand the importance of continuous,stable and efficient production for our customers.
(4)Environmental, health-friendly and safety design
The laser welding technology is constantly developed, which improves work safety and reduces the possibility of potential hazards. The machine is equipped with the air filter system, which automatically removes fumes and dust, to protect operator's health.
(5)Super Strict quality control and standard production process
All our machines must approve three times inspection: raw material inspection, production inspection and finishing test. Specially, the finishing machine will be tested continuously 48 hours before packing. We know these operation will sacrifice working time and increase cost, but we insist on controlling all risks in production.
After Sales Service
1. Marketing support . We will offer huge customers database and marketing strategy.
2. Exhibition support. We will share the exhibition cost in your country to support your sales.
3. Technical support. Our engineer will offer online training and trouble-shooting immediately.
4. Longer guarantee. 2 years guarantee and lifetime maintenance.
5. Sample machines support. We can offer one machine to your showroom.
6. Payment terms support. Will be negotiable.
7. OEM and ODM support.

Packing And Shipping
FAQ Q1: Is your company a manufacturer or a trading company?
A1: We are a manufacturer, now in SHANDONG, China. Committed to providing For the majority of users to provide economic, high quality laser equipment. Welcome to our factory.
Q2: How can we guarantee quality?
A2: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q3: What can you buy from us?
A3: Laser welding machine, High precision Fiber laser cutting machine, Laser marking machine,3D laser engraving machine

Q4: How long does it take to learn the laser? A4: The software is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.
Q5: What should I do when something goes wrong with the laser?
A5: We offer a 24 months warranty. In warranty, we will provide the broken items free of charge. Beyond the warranty period, we still provide maintenance service.
Q6: Will the laser machine be safe during transport?
A6: (1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .

---
