Factory Wholesale Price High Oil Yield Cold and Hot Press Oil Press

Product Description

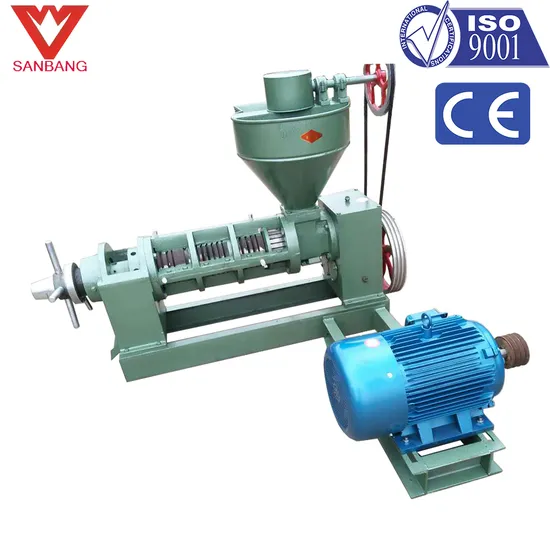

6YL series spiral oil press

Equipment usage:
The Sanbang spiral oil press is suitable for more than 50 types of oil crops, including peanuts, soybeans, rapeseed, cottonseed, sesame seeds, autumn sunflower seeds, sunflower seeds, tea seeds, castor seeds, corn germ, grape seeds, mustard seeds, perilla seeds, Moringa seeds, rubber seeds, tung oil seeds, pomegranate seeds, pumpkin seeds, and grass seeds.
Product Parameters

type	6YL-68	6YL-95	6YL-100	6YL-110	6YL-120	6YL-130	6YL-165	6YL-200
screw diameter	φ 68.5mm	φ 94.5mm	φ 94.5mm	φ 105mm	φ 115mm	φ 123mm	φ 160mm	φ 200mm
screw speed	137-160r/min	30-40r/min	30-40r/min	30-40r/min	30-35r/min	28-33r/min	22-28r/min	30-40r/min
power	5.5(Y132M-4)	7.5KW(Y132M-4)	11KW(132M-4)	11KW(Y132M-4)	15KW(Y132M-4)	18.5KW(Y132M-4)	22KW(Y132M-4)	37KW(Y132M-4)
electrical heating		1.2KW	1.2KW	1.5KW	1.5KW	1.5KW
capacity	40Kg/h	150-200Kg/h	150-200Kg/h	180-230Kg/h	200-250Kg/h	300-400Kg/h	600-800Kg/h	1000Kg/h
weight	150Kg	370Kg	550Kg	580Kg	680Kg	800Kg	1600Kg	2500kg
Package size mm	1000x550x1150	1920x550x765	1920x550x765	2140x550x765	2100x610x785	2240x610x815	2290x750x1020 880x750x760	2600x1000x1450 900x850x880

Detailed Photos
Product Description
Features of Sanbang spiral oil press:
1. The screw oil press has high oil yield, strong adaptability, and can operate continuously, with a large single machine processing capacity
2. The clearance between the oil lines of the spiral oil press is small, reducing the amount of slag, increasing the pressure of the press chamber, and improving the oil output rate.
3. Dynamic pressing and squeezing, friction heating, short pressing time, fast oil delivery, Sanbang oil press;
Key points before starting up the Sanbang spiral oil press:
1. Fill the gearbox with oil before starting up
After the machine is installed, add lubricating oil according to regulations, check whether all components are tightened, whether the operating handle and insertion plate are flexible
3. Move the large pulley by hand to check if the machine is loose or stuck. If there are any abnormalities, they should be promptly eliminated
4. Adjust the tightness of the belt, start the motor, check if the direction of the groove wheel is consistent with the marked direction, and use the Sanbang oil press
5. After checking the preparation work, loosen the locking nut to tighten the screw to the dead center, then retreat 3-4 turns, and move forward half a turn to ensure the gap between the screw and the cake outlet Company Profile
Packaging & Shipping
Our Advantages

---
