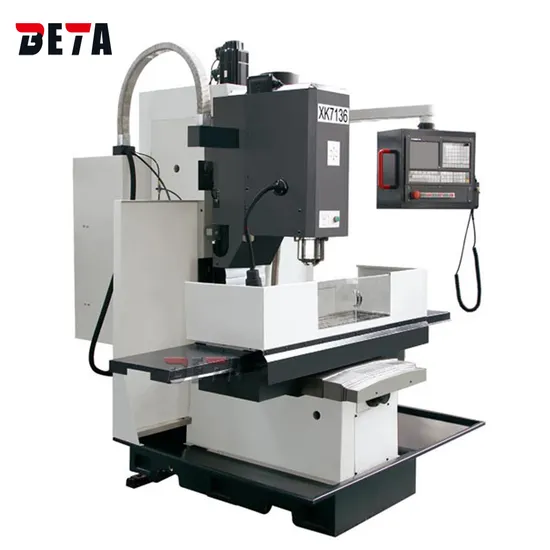

Xk7136 Bt40 Spindle CNC Milling Machine with 8000 Rpm

Product Description

XK7136 BT40 spindle CNC milling machine with 8000 rpm

Specification	Unit	XK7136
Table size	mm	1250×360
T-slot (number/width/spacing)	mm	3/18/80
X-axis travel	mm	900
Y-axis travel	mm	360
Z-axis travel	mm	480
Spindle taper		BT40
Max.spindle speed	rpm	8000
Spindle nose to table surface distance	mm	100-600
Spindle center to column guideway surface distance	mm	460
Main motor power	kw	5.5
X/Y/Z-axis motor	kw	1.5/1.5/1.5
Max. X/Y/Z-axis rapid movement	m/min	10
Cutting feed	mm/min	1-2000
Max. load	kg	300
Positioning accuracy	mm	X:0.04 Y/Z: 0.03
Repeat positioning accuracy	mm	X:0.025 Y/Z: 0.02
Net weight	kg	2200
Overall dimensions	mm	2220×1850×2280

Standard accessories:
GSK CNC controller
Rectangular hardened Y/Z guide rail ways
BT40 spindle with 8000 rpm speed
Centralized auto-lubrication system
Work light
Coolant system
MPG
Semi-closed protection cover
Optional accessories:
Siemens/Fanuc CNC controller
16 pcs automatic tool changer
Features:
1. Base, column, worktable, middle slide, lifting slide all major components are casted and formed by high-strength materials to ensure long-term stability and provide guarantee for stable performance.
2. Adopts high speed, high precision and high rigidity spindle units with Max. speed up to 8000rpm.
3. Y & Z guide ways all adopts rectangular rails with supersonic frequency induction hardening & precision grinding. Slide guide way has experience precision scraping and pasted compound PTFE materials, equipped with automatic obliged lubrication, frictional resistance of feeding motion declines and reduces low-speed creeping, which improves accuracy life of machine tools.
4. X, Y and Z axis adopts high-precision & high-strength ball screw and servo motor to ensure positioning accuracy of machine tools.
5. Guide way and ball screw adopts protection devices to ensure cleaning of ball screw and rails as well as machine transmission & operation accuracy.
6. Power-driven lubrication devices could have forced-feed lubrication upon longitudinal, horizontal, vertical lead screws and guide ways to diminish abrasion and ensure machine high-efficiency operation; meanwhile, cooling system could change amount of flow by adjusting spray nozzle to satisfy different processing demands.
7. XK7136 without automatic tool changer .

---
