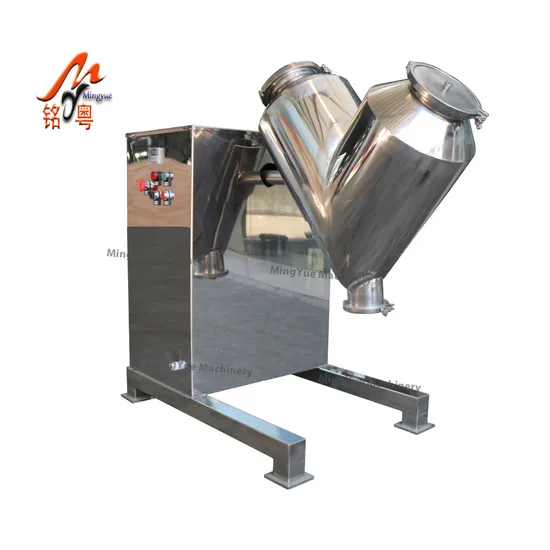

V-Mixer V-200 High Quality Vertical Stainless Steel V Type Dry Powder Mixer B

Product Description

Product Description 1.Application:
This series of machine are newly design, high efficient and high accuracy mixer. It is widely used for dry material grains in the field of medical, chemical, food, metallurgical and other industry.
2.Working Principle:
the machine is mainly composed of mixing tank, spiral agitating vane and transmission parts. There are two layers of spiral agitating vane. The outside vanes accumulate the material from side to center, while the inner vanes separate the material from center to side. So that material will mix to each other in convective mixing inside the tank. It's high efficient.

Product Parameters

Model No	Specificatio (m3)	Total Volume (L)	Capacity (KG)	Rotorspeed r.p.m	Power (kw)	Overall dimensions (mm)	Net weight (kg)
V50	0.05	50	20	15	0.37	1340*600*1340	180
V100	0.15	100	50	15	0.75	1900*730*1550	320
V200	0.5	200	100	15	1.7	2100*800*1750	380
V300	0.5	300	150	15	1.8	2140×890×1900	440
V400	0.6	400	200	15	2	2200*1000*2000	500
V500	0.7	500	300	15	4	2500*1100*2100	600

Factory Workshop

FAQ
1. How long is the machine warranty?The whole machine has a one-year warranty and lifetime maintenance and aftersales services.2. Is there a instructional video?We provide insturction videos and we also support online video call instruction 7/24 service.3 What shipping service do you offer?We support fast and safe delivery services by DHL, Fedex, UPS, SF express
We also have DDP services to almost all the countries.4. Do you support samples making before placing order?We Support samples making, as long as you can manage sample materials to us, we try on our machine and take videos or we support online video call for the sample making process.
5. Do you support OEM or ODM?
Yes, we are facotry, and we have a strong RD team , we support customization for machines, and we make blueprint specific practical for your program.

---
