Obbo Zirconia Ceramic Foam Filter for Molten Steel Iron Metal Filtration

Product Description

Product Description

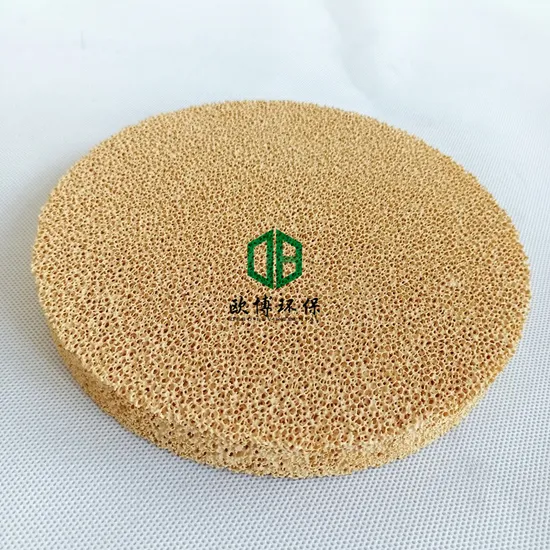

Obbo Zirconia Ceramic Foam Filter for Molten Steel Iron Metal Filtration
Functions of Zirconia ceramic foam filter
1.Efficiently filter metal particles impurities such as slag and refractory fragments to the micron level to reduce the loss of tools during machining of castings
2.The molten metal filling is stable and the structure of the casting is uniform, thereby improving the mechanical properties such as surface hardness, tensile strength and fatigue resistance of the casting
3.The three-dimensional mesh structure has a good rectification effect on metal turbulence, and has a good control effect on non-metallic inclusions and secondary oxidation caused by turbulent erosion of the cavity.
4.Simplified gating system and improved cavity utilization
5.The surface of the casting is clean, reducing the machining allowance, shortening the cleaning time, and improving the delivery efficiency
Physical and Chemical Properties

Material	Zirconia
Color	Yello
Pore Density	10-30ppi
Porosity	80-90%
Refractoriness	≤1700ºC
Bending Strength	>0.8Mpa
Compression Strength	1.5Mpa
Volume-weight	0.7-1.0 g/cm3
Thermal shock resistance	6times/1100ºC
Application	Steel casting & cast iron castings

Sizes

Dimensions(mm)	Pouring rate(kg/s)	Filtration Capacity(kg)
50*50*22	3-5	30
50*75*22	4-6	40
75*75*22	7-12	60
75*100*22	8-15	80
100*100*22	14-20	100
Φ50*22	2-6	18
Φ80*22	6-10	50
Φ90*22	8-16	70

Recommended Products
Company Profile
Packaging & Shipping
FAQ
1.Q:Are you trade company or manufacture?
A:We are manufacture with more than 14 years experience,and the price is the factory price.

2.Q:How to control the quality?
A:We have strict quality by QC team.

3.Q:How long is the delivery time?
A:It is about 5 days after payment for stoct goods,10-15 days for new producing goods.

4.Q: How to get the sample ?
A: Please contact us for send your samples.

5.Q:What is the payment terms?
A:Flexible and diverse payment ways can be chosen, make you more convenient .
Generally,30% in advance,70% before shipment

6.Q:Can you do OES service?
A:Yes,size & shape could be made as customer requirment

---
