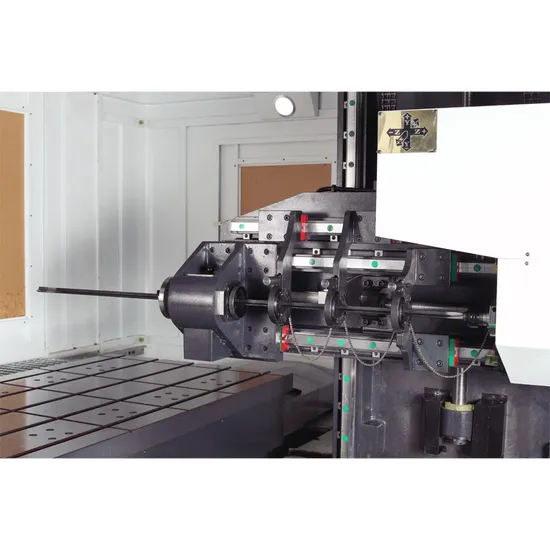

Depth 600mm 3 Spindles Boring Machine with Milling Capacity (ZJA06-0606)

Product Description

ZJA SERIES ZJA06-0606
Product application
Deep hole drilling machines are mainly used in the industries as following:
-Mould industry: water line hole, thimble hole, ejection pin hole, electric hole, and inclined hole, etc.
-Hydraulic machinery industry: valve, distributor and pump,etc..
-Automotive industry: cylinder, fuel supply system and other parts
-Aerospace industry: the propeller, landing gear and other parts.
-Chemical and generator industry: heat exchange parts.
Technical Parameter

Items		ZJA06-0606
Processing capacity	Drilling aperture range	φ3~φ32mm
	Max. drilling depth	600mm
Processing range	X axis processing range	600mm
	Y axis processing range	600mm
Working table	Dimension of working table	500×800mm
	Max. Loading capacity	3Ton
Processing speed	Max. Speed of spindle	4500r/min
	Feed speed	0~3000mm/min
Power parameter	Spindle servo motor	5.5KW
	X axis servo motor	6N.m
	Y axis servo motor	10N.m
	Z axis servo motor	6N.m
	Total power	23KW
Cooling system	Max. Pressure of cooling system	100kg/cm2
	Max. Flux of coolant liquid	80L/min
	Capacity of cutting oil tank	600L
Precision parameter	Aperture precision	IT8~IT11
	Harshness of Hole Surface	Ra ≤3.2μm
	Tolerance	0.5/500(S45#,10mm)
Others	Weight	5Ton
	Floor area of machine(Length*Width)	4200×2600mm
	Height	2300 mm

It is a special deep hole drilling operating system, which is powerful, simple operating, stable and durable. Main advantages:
1.Multi - segments processing automatically: It will adjust the feed rate automatically according to the processing schedule.
2.Logical control processing: The processing situation is monitored and the processing specification will be adjusted automatically if any unusual.
3.The highly sensitive monitoring equipment will sound an alarm if any unusual errors and stop processing, which is safe and found intuitively.
4.Multiple operation. There are optional modes: man-machine dialogue mode, machine programming mode and remote transmission mode.
The main structure and performance of the equipment
ZJA series is a CNC automatic machine for deep-hole drilling.The machine tool integrates modern industrial advanced technology as below:
Taiwan SYNTEC CNC system: stable performance, convenient operation programming, perfect and punctual after-sales service.
2.With high precision ball screw bar and rolling linear guide, the operating components make positioning accurately.
3.Remote control device is adopted in cooling system. Depends on the hole size, materials, chips and required precision, adjusting the flow rate and pressure can optimize the cooling result.
With the modern industry advanced technology, the performance, accuracy, processing range, operating mode and working efficiency are in the international advanced level.
Company Profile
Nanyang Zonjet CNC Technology Co., Ltd, located in Nanyang City, Henan Province, is one of the most important industrial projects in Nanyang. It is a garden style modern factory, covering an area of 5,000 square meters, including 3,000 square meters for productive land. There are 2 production bases in Nanyang, Henan and Dongguan, Guangdong. Integrating product development, manufacturing, customer service and all the resources, there is a core value system of full rage of service in Zonjet.
Zonjet CNC Technology Co., Ltd, focusing on area of CNC deep-hole drilling, has been developing in a high speed since established, and Zonjet has become a very effective brand name in the industry. Taking the need of customers as direction for product design and positioning, the function and specification of our products meets the demands of all users in different areas. Customizing products also creates the highest economic benefits for users. Main products: three-axis CNC deep-hole drilling machine tool, four-axis multifunctional deep-hole drilling machine tool, five-axis drilling and milling center, six-axis drilling and milling machine tool, tube plate machine tool, shaft deep-hole drilling machine tool and other deep-hole drilling machine tools for special industries.
