Good Price 300-6000kg/h PET bottle Flakes Plastic crushing washing recycling Machinery

Product Description

Product Description
This series plastic recycling machine will be used to recycle pet bottle,water bottle,Sprite bottle,cola bottle,juice bottle,pet sheet,pet packing container,pet strap and so on. After washing recycling ,dirty pet material will remover label,oil,glue,sand etc.
New flakes can be make 2-d or 3-d pet fiber,filament yarn,pet strap,pet sheet ,pet film etc.
According to the final usage of PET flakes, We supply:
- Bottle to bottle grade,Food Standard
- Yarn/filament grade
- conventional grade

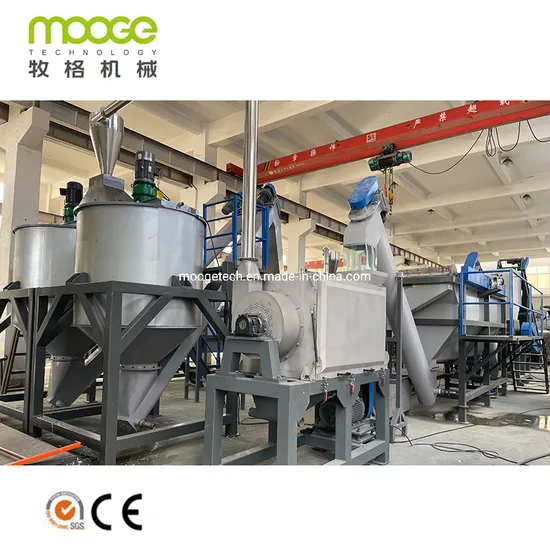

Manufacturing Technique
--- Bale opener: open the baled pet bottles and loose it
--- Trommel: Further loose the pet bottles, screen out the sands, soil from the bottles
--- Label separator: remove and separate labels from waste bottles.
--- Sorting belt: manual sorting out different color and Non-PET bottles.
--- Wet crusher: with water, shredder plastic bottle into small size.
--- 1# floating washer tank: washing out the floating caps, rings and dirty.
--- 1# high speed friction washer machine: with high speed friction washing out dirty.
--- Hot washer tank: with hot water washing to remove oil, glue and dirty.
--- 2# high speed friction washer machine: with high speed friction washing out dirty
--- 2# floating washer tank: washing out the floating caps, rings and dirty.
--- 3# floating washer tank: washing out the floating caps, rings and dirty.
--- Dewatering machine: remove the dirty and water from the material.
--- Hot air drying system: drying the bottle flakes.
--- Zig-Zag air classifier: remove the fine dust and final labels.
--- Storage hopper: collect the clean material.
--- Control cabinet: Used to control the whole line
Machine parameter

Model	Capacity	Install power	Water supply	Flakes size	Area(L*W*H)
MT-500	500 kg/h	185 kw	4-5 cbm/h	14-16 mm	55*3.5*4.5m
MT-1000 Economic	1000 kg/h	305 kw	5-6 cbm/h	14-16 mm	55*6*3.5m
MT-1000	1000 kg/h	320 kw	5-6 cbm/h	14-16 mm	62*5*4.5m
MT-2000	2000 kg/h	425 kw	10-15 cbm/h	14-16 mm	80*6*5m
MT-3000	3000 kg/h	600 kw	20-30 cbm/h	14-16 mm	100*8*5.5m
MT-4000	4000 kg/h	800 kw	30-40 cbm/h	14-16 mm	135*8*6.5m
MT-5000	5000 kg/h	1000 kw	40-50 cbm/h	14-16 mm	135*8*6.5m

Our Service
1.Pre-sale:We given client the details technician offer, sign the sales contract etc
2.In-sales:We supply the details layout, installation instruction, technician support for the clients
3.After sales:We arrange engineer to install the machinery and training the workers for client
4.We have 24 hours team to solve the after sales problem
5.We have free spare parts with the machine
6.We supply long term spare parts for every customer
7.We always update the new technology to every customer
Packing & Delivery
1.For the loose cargo we will packing by wooden box
2.For the full container loading we are packing the machine by film and some on pallet accordingly
3.We can shipping the goods by air or by sea
4.We will send pictures of cargo loading to our client to check and keep recording
5.We can send cargo to client's warehouse to loading

---
