High Quality Truss Type 5 Axis CNC Machine for Mould Making

Product Description

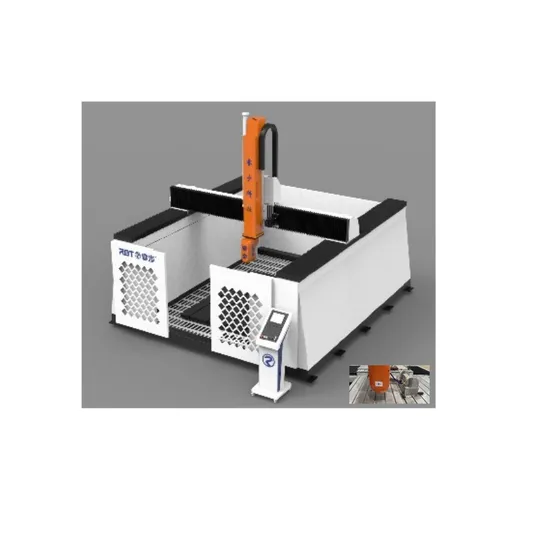

High Quality Truss Type 5 axis CNC Machine for Thermoplastic Components
Product Parameters

Content	Parameter	Content	Parameter
Name	Truss Type 5 axis CNC Machine	Brand	RBT
Model	RB-H5-2115-Z08	Voltage	3-380V
X/Y/Z Axis Travel	2100*1500*800mm	Machine rated power	16.3KW-30.8KW
C/B Axis Travel	±540°/±130°	Weight	7000KG
Spindle power	5.5KW-20KW	Dimension	L4380*W3000*H3400mm
Control system	Taiwan*SYNTEC	Machine Origin	Guangdong / Fujian

Product Description
(1) High safety standards and clean operating environment: It adopts a truss structure, equipped with a protective room and a stable workbench. The semi-enclosed protective structure and integrated dust collection system ensure the safety of operation and the cleanliness of the workshop;
(2) Efficient processing performance: It has five-axis linkage 3D processing capabilities, which can quickly complete complex five-sided processing and arbitrary surface processing;
(3) Processing flexibility: The tool is driven by five movable coordinate axes, while the workbench remains fixed, providing flexible processing options;
(4) Personalized customization: According to the specific needs of customers, the processing range of the equipment can be customized to meet the processing needs of different products;
(5) Versatility: It can be equipped with advanced functions such as dust collection system, automatic tool changer, tool magazine and RTCP to improve production efficiency and processing accuracy;
(6) Powerful processing capabilities: It can perform high-precision milling, drilling, engraving and many other processing tasks;
(7) Advanced axis configuration: A double-swing head five-axis processing system consisting of a truss double Y-axis, X-axis, Z-axis, C-axis and B-axis.
Application Areas
It is suitable for aerospace, automotive, mold processing, medical equipment production and other industries.
Applicable Materials
(1) Composite materials: including carbon fiber (PCM, RTM, SMC, LFT, etc.), glass fiber, carbon/carbon, etc.
(2) Plastic materials: covering ABS, PVC, PC, PP, PS, PE, PET, HDPE, PETG, acrylic, etc.
(3) Other materials: high-density foam, polystyrene foam, wood, wood substitutes, stone, gypsum, etc.

Certifications
Company Profile

Packaging & Shipping
1.Plastic film packaging and put in plywood wooden cases or according to customer's requirements.2.Shipping : Container transport.
