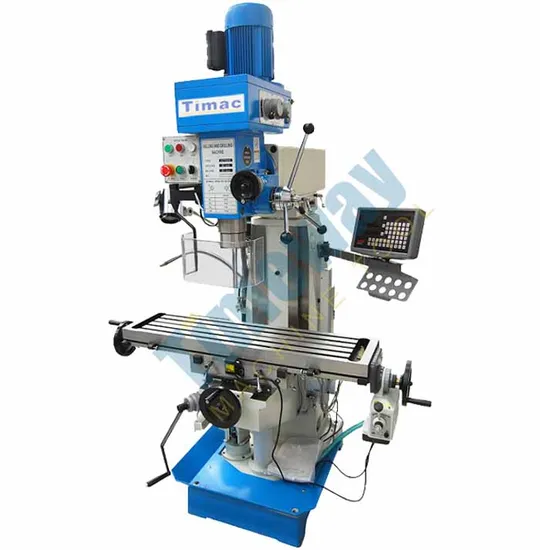

Vertical Drilling and Milling Machine Zay7032V/1 Zay7040V/1 Zay7045V/1

US$700.00-2,500.00 1 Piece (MOQ)

Basic Info.

Model NO.

ZAY7032V/1 ZAY7040V/1 ZAY7045V/1

Type

Worktable Milling Machine

Object

Tool

Structure

Desktop

Milling Cutter Type

Vertical Milling Cutter

Milling Cutter Structure

Overall Welding Tooth

Controlling Mode

Program Control

Automatic Grade

Automatic

Precision

Certification

CE, RoHS, ISO 9001

Condition

New

Layout

Vertical

Number of Shaft

Hole Diameter

<50mm

Drill Capacity

32mm

Taper

Mt3

Motor

1.1kw

Spindle Travel

130mm

Table Size

800X240mm

Transport Package

Plywood Case

Specification

125kgs

Trademark

HOYONG-TRD

Origin

Shandong, China

HS Code

84595900

Production Capacity

10 PCS/Month

Product Description

DRILLING MILLING MACHINE FEATURES:
Variable speed
Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
SPECIFICATIONS:

ITEM	ZAY7032V/1	ZAY7040V/1	ZAY7045V/1
Max.drilling capacity	32mm	40mm	45mm
Max Face mill capacity	63mm	80mm	80mm
Max End mill capacity	20mm	32mm	32mm
Distance from spindle nose to table	450mm	450mm	450mm
Min.distance from spindle axis to column	260mm	260mm	260mm
Spindle travel	130mm	130mm	130mm
Spindle taper	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Range of spindle speed(2 steps)	100-530,530-2800r.p.m,	100-530,530-2800r.p.m,	100-530,530-2800r.p.m,
Auto-feeding step of spindle	6	6	6
Automatic feeding amount of spindle	0.06-0.30mm/r	0.06-0.30mm/r	0.06-0.30mm/r
Swivel angle of headstock (perpendicular)	±90°	±90°	±90°
Table size	800×240mm	800×240mm	800×240mm
Forward and backward travel of table	175mm	175mm	175mm
Left and right travel of table	500mm	500mm	500mm
Motor power(AC)	1.1KW	1.1KW	1.5KW
Voltage/Frequency	110V or 220V	110V or 220V	110V or 220V
Net weight/Gross weight	320kg/370kg	323kg/373kg	325kg/375kg
Packing size	770×880×1160mm	770×880×1160mm	770×880×1160mm

Standard accessories :	Optional accessories :
Drill chuck Reduction sleeve Draw bar Some tools	Stand base Auto power feed Machine Vice Collets chuck Work lamp Coolant system
