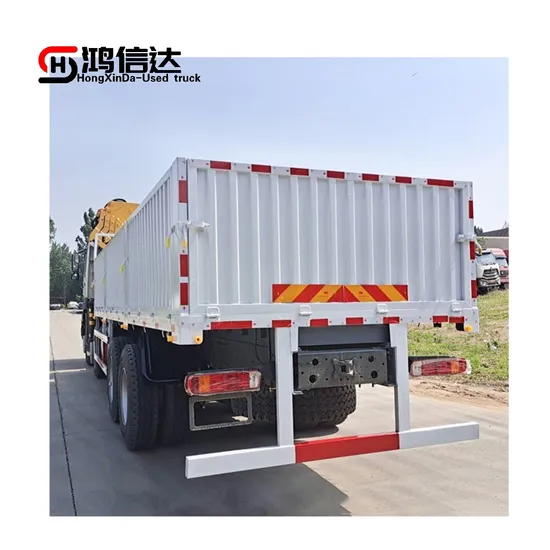

Sinotruk HOWO 6X4 10 Wheelsmobile Cargo Hydraulic Boom Telescopic Arm Lifting Knuckle Lorry Truck Mounted Crane

Product Description

Product Description Truck-mounted crane, a hydraulic lift and telescopic system that enables lifting, rotating and hoisting, is usually mounted on trucks. In short, a truck-mounted crane is one of the multifunctional specialised vehicles that combines lifting and transport. It usually consists of a truck chassis, a cargo hold, an extractor and a crane. The truck chassis can be chosen from tonnage such as Dongfeng, Jiefang, Foton, SinotruckTruck and so on.

Engine	WP10.380E22,4-stroke,direct injection,turbocharged and intercooled
Displacement	9.726L
Transmission	HW19710, 10 forward and 2 reverse, manual
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle	VGD95 (9500Kg)
Rear Axles	HC16 (2x16000Kg) Ratio: 4.8
Chassis	Enhanced version of multiple-leaf spring (Front 10 pieces, Rear 12 pieces)
Fuel tank	With one 300 L fuel tank with locking fuel cap
Steering	ZF power steering, model ZF8118 , hydraulic steering with power assistance Ratio: 22.2-26.2
Brakes	Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Without ABS (Optional)
Wheel & Tires	Rims width: 8.5 Tires : 12.00R20
Cab	HW76 cab, one sleeper, all steel forward control, 55°hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, exterior sun visor, stereo radio, safety belts, air horn, air conditioner, and single berths with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner, adjustable roof flap. With air conditioner (optional)
Electrics	Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW Alternator: 3-phrase, 28V, 2240W; Batteries: 2×12, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp
Upper(Crago with Crane)	7200x2300x600mm, bottom 3mm, side 1.5mm; SQ12SK3Q 12T straight-arm truck mounted crane
Dimensions in mm	Wheel base Front wheel track Rear wheel track Front overhang Rear overhang Approach angle(o) Departure angle(o)		4625+1350 2022 1830 1500 1670 19 26
Weight in kg	Net weight Maximum load mass Front axle loading capacity Rear axle loading capacity		14000 30000 9000 16000×2
Performance	Maximum driving speed(km/h) Maximum grade ablility (%) Minimum ground clearance(mm) Minimum turning circle(m)		78 35 290 15

Recommended Products Company Profile
Packaging & Shipping
FAQ
Q1: Are you a trader or a manufacturer?
A1: We are manufacturers. We have exhibition rooms, truck maintenance workshops and professional workers for sale.
Q2: How to do after-sales service?
A2: We will give video guidance by phone or computer. You can tell our sales staff about any use problems, and we will give you guidance.
Q3: What is the transportation process?
A3: For the field of trucks, most of the services we use are bulk shipping services.
Q4: May I visit your factory?
A4: Welcome to visit our seminar. We are located in Shandong and prefer face-to-face conversation.
Question 5: What kind of payment terms do you offer?
A5: We can do TT, LC, 50% in advance and 50% before shipment.

---
