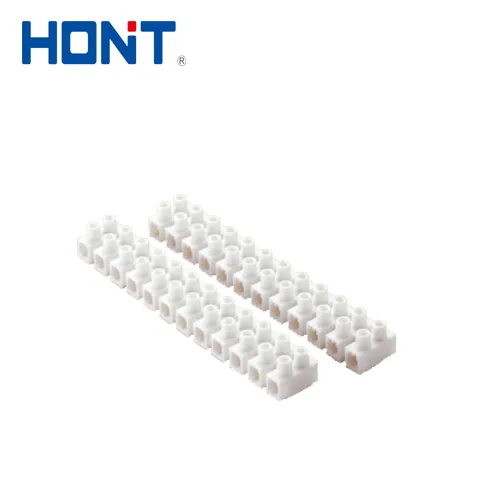

High Quality White H-6 PA/PE/PP Type Terminal Block

Product Description

H TYPE TERMINAL BLOCK (12 POLE)
Material:insert: brass
Plastic: PE,PP,or PA
Color:Natrual ,Black ,White
Max.Operating temperature:-5ºC~ +85 ºC for PE
According to : EN60998-1 EN60998-2-1

ITEM NO.	Rated current(A)	Section size(mm²)	Dimension (mm)
			L	W	H	A	B	D
H-3	3	2.5/4	92	15.5	12.7	5.5	8.0	3.0
H-6	6	6	119	17.3	13.9	6.5	8.2	3.3
H-10	10	10	131	20.85	16.4	7.25	11.2	3.71
H-15	15	12	135	22.65	18.25	8.25	11.5	4.2
H-20	20	14	141.6	22.65	18.4	8.5	12.2	4.5
H-30	30	16	165	24.1	21.1	9.5	14.1	5.5
H-60	60	25	190	30.8	25.2	11.15	16.5	6.3
H-80	80	30	201	36	22.65	12.1	18.15	6.9
H-100	100	35	228	38	33	13.8	9.4	7.4
H-150	150	40	261	44	33	21.2	22	8.3

FAQ
Q1. What's the MOQ?
USD3000,negotiatable for trial order.

Q2. What's the delivery time for sample order?
The proofing time is 5-7 days.

Q3. What's the delivery time for first order?
Normally 25-30 days,during busy season,it's is 30-45 days accordint to your purchase quantity.

Q4. What's the payment terms?
We accept T/T; L/C,other way please consult by email.

Q5. How to pay for the order?
30% deposit ,70% balance received before B/L.

Q6. Could you offer samples?
Available.
Q7. Can you give the CIF price?
CIF price we will require for the detailed quantity and size.

Q8. What's the package?
Cartoon box.We can follow as your requested if you have special requested in packing.

---
