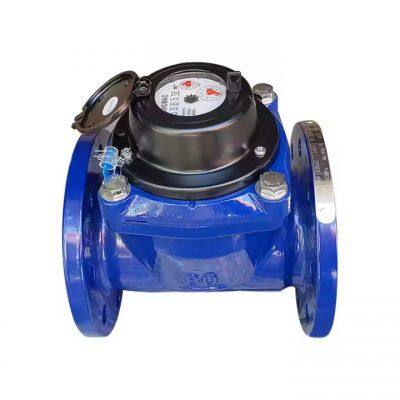

Product Description
Product Description
Application
Measuring the volume of cold (hot) water passing through the pipeline.
Note
This water can be used for a remote reading transmission system as equipped with a built-in sensor.
Feature
a)Removable element structure,easy installation and maintenance,registerfor universal use within this range detachable without removing the meter from the pipeline;
b)Dry-dial,magnetic driven,with sensitive action,small pressure loss;
c)Vacuum sealed register ensures the dial face keep free from fog and reading clearly in a long time;
d)High quality materials for steady and reliable characteristic;
e)echnical data conform to ISO 4064 Class B,and ISO4064-1:2005.
Working condition
Water temperature:0.1℃~50℃(cold water meter) 0.1℃~90℃(hot water meter)
Water pressure:≤1.0MPa(1.6MPa)
Maximum permissible errors
From Q1 to Q2:±5%
From Q2 to Q4:±2%(±3% for water meter)
MAIN TECHNICAL SPECIFICATIONS
Type
| Size(mm)
| Q3/Q1
| Overload Flow
| Permanent Flow
| Transitional Flow
| Min. Flow
| Min. Reading
| Max. Reading
|
m3/h
| M3
|
LXLC-50
| 50
| 50
| 31.25
| 25
| 2
| 0.5
| 0.0005
| 999,999
|
LXLC-65
| 65
| 50
| 40
| 3.2
| 0.8
| 0.0005
| 999,999
|
LXLC-80
| 80
| 78.75
| 63
| 5.04
| 1.26
| 0.002
| 999,999
|
LXLC-100
| 100
| 125
| 100
| 8
| 2
| 0.002
| 999,999
|
LXLC-125
| 125
| 200
| 160
| 12.8
| 3.2
| 0.002
| 999,999
|
LXLC-150
| 150
| 312.5
| 250
| 20
| 5
| 0.002
| 999,999
|
LXLC-200
| 200
| 500
| 400
| 32
| 8
| 0.002
| 999,999
|
LXLC-250
| 250
| 787..5
| 630
| 50.4
| 12.6
| 0.02
| 9,999,999
|
LXLC-300
| 300
| 1250
| 1000
| 80
| 20
| 0.02
| 9,999,999
|
DIMENSION
Type
| Size
| Length
| Height
| Connecting flange
|
mm
| ΦD1 outside diameter
| ΦD2Bolt circle diameter
| Connecting
Bolts(n-M)
|
LXLC-50
| 50
| 200
| 261
| 165
| 125
| 4-M16
|
LXLC-65
| 65
| 200
| 271
| 185
| 145
| 4-M16
|
LXLC-80
| 80
| 225
| 276
| 200
| 160
| 8-M16
|
LXLC-100
| 100
| 250
| 289
| 220
| 180
| 8-M16
|
LXLC-125
| 125
| 250
| 299
| 250
| 210
| 8-M16
|
LXLC-150
| 150
| 300
| 319
| 285
| 240
| 8-M20
|
LXLC-200
| 200
| 350
| 346
| 340
| 295
| 8-M20(1.0MPa)
|
12-M20(1.6MPa)
|
LXLC-250
| 250
| 400
| 434
| 395
| 350
| 12-M20(1.0MPa)
|
450
| 434
| 405
| 355
| 12-M24(1.6MPa)
|
LXLC-300
| 300
| 450
| 459
| 445
| 400
| 12-M20(1.0MPa)
|
500
| 459
| 460
| 410
| 12-M24(1.6MPa)
|
>>
