20kVA 14kw 15kw Silent Generator with Yangdong Engine 18 kVA Diesel Generator Set

US$1,000.00-2,999.00 1 Piece (MOQ)

Basic Info.

Model NO.

SC17YS

Type

Micro-Computer Control Automatic Diesel Generator

Installation Method

Fixed

Stroke

Four Stroke

Cooling Method

Water Cooling

Output Type

AC Three Phase

Speed

Conditions of Use

Land Use

Usage

Common Units, Standby Unit, Emergency Crew

Landuse Type of Unit

Low Noise Automation Type

Excitation Mode

AC Rotating Exciter

Rated Frequency(Hz)

50Hz/60Hz

Rated Voltage(V)

230 / 440

Rated Power(kVA)

10-86kVA

Controller

Deepsea,Smartgen, Mebay, Delf, Fortrust, Comap

Alternator

Brushless Alternator

Engine

Yangdong Ynd485D

Cyl

Displacement

3.5L

Fuel Consumption

230g/Kw.H

Radiator

Corrosion Resistant Radiator

Starting System

24V Electric System

Insulation Class

Phases

Protection

IP23

Weight

640-1100kg

Transport Package

Wooden Packing

Specification

1700*900*1130

Trademark

Senci

Origin

China

Production Capacity

5000pieces/Year

Packaging & Delivery

Package Size

1720.00cm * 920.00cm * 1150.00cm

Package Gross Weight

490.000kg

Product Description

Product Description
Type : Silent type
Power section : 50HZ/60HZ 9kVA - 94kVA
Alternator : Yangdong
Controller : Deepsea,Smartgen, Mebay, DElF, Fortrust, Comap

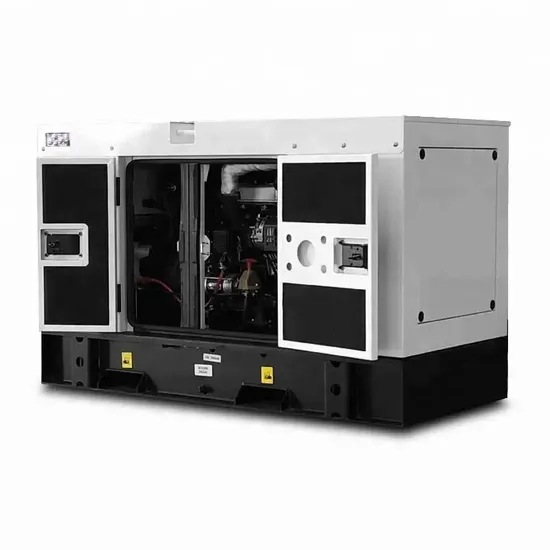

Product description: Senci diesel generator set With Yangdong engine and brushless alternator and Deepsea controller.1. Silent type unit Soundproof and weatherproof canopy, which is made by 1.5- 2mm cold steel.
2. The best powder coating with chemical surface treatment ensure corrosion resistance and coating quality.
3. 5mm mute cotton and good exhaust system. Noise level ≤75dBA at 7 meters
4. Forklift hole and lugs are mounted on the base frame.
5. Emergency stop button mounted on canopy to faciliate emergency operations.
6. Control panel viewing window allows users to monitor the control panel.
7. Lubricant and coolant drain are installed for convenient replacement.
Product Parameters

Powered by Yangdong 50HZ 400/230 V 10-100KVA
Model	LTP		PRP		Engine		Fuel Cons.	Cylinder	Displacement	Gov.	Dimention	Weight
Model	KVA/KW		KVA/KW		Model	Origin	L/H(100%)	Cylinder	L	Gov.	LWH(MM)	KGS
SC10YS	10	8	9	7	YD380D/10KW	CN	2.2	3L/NA	1.357	M	15507601250	460
SC14YS	14	11	13	10	YD385D/12KW	CN	2.7	3L/NA	1.532	M	15507601250	480
SC17YS	17	13	15	12	YD480D/14KW	CN	3.5	4L/NA	1.809	M	16507601250	491
SC19YS	19	15	18	14	YND485D/17KW	CN	4.1	4L/NA	2.156	M	16507601250	512
SC25YS	25	20	23	18	YSD490D/21KW	CN	5.2	4L/NA	2.540	M	17607601250	530
SC28YS	28	22	25	20	Y490PD/24KW	CN	5.2	4L/NA	2.670	M	17607601250	560
SC33YS	33	26	30	24	Y4100D/32KW	CN	6.8	4L/NA	3.707	M	18807601300	690
SC41YS	41	33	38	30	Y4105D/38KW	CN	9.2	4L/NA	4.100	M	18807601300	795
SC55YS	55	44	50	40	Y4102ZLD/48KW	CN	9.4	4L/TC	3.875	M	18807601300	805
SC66YS	66	53	60	48	Y4105ZLD/55KW	CN	11.5	4L/TC	4.100	E	18807601300	823
SC74YS	74	59	68	54	YD4EZLD/63KW	CN	16.5	4L/TC	4.100	E	19707301430	890
SC94YS	94	75	85	68	Y4110ZLD/80KW	CN	20.9	4L/TC	4.484	E	20509001430	1050

Yangdong diesel generator sets specification
generator set performance						Engine Performance			Dim.LWH
Genset model	Prime power		Standby power		Fre.	Model	Power	Fuel consumption	Open type	Weight	Silent type	Weight
Genset model	KW	KVA	KW	KVA	HZ	Model	Power	g/kw.h	(mm)	(Kg)	(mm)	(Kg)
SC10YS	8	10	8.8	11	50	YD380	10	245	15206701110	500	17009001130	640
SC12YS	10	12.5	11	13.8	50	YD480D	14	240	15206701110	520	17009001130	690
SC15YS	12	15	13.2	16.5	50	YD4KD	15	240	15206701110	540	18009001130	740
SC17YS	14	17.5	15.4	19.3	50	YND485	17	230	15406701110	560	18009001130	760
SC20YS	16	20	17.6	22	50	YSD490D	21	225	15407501130	586	20609101150	780
SC25YS	20	25	22	27.5	50	Y490H	24	225	16607501130	610	20609101150	840
SC30YS	24	30	26.4	33	50	Y4100D	31.5	223	17007501130	700	20609101150	880
SC35YS	28	35	30	37	50	Y4102D	33	220	17007501130	720	20609101150	906
SC37YS	30	37.5	33	41	50	Y4102ZD	40	215	17407501130	793	22001001200	1100

SC11YS	9	11	10	12.5	60	YD380	12	245	15206701110	500	17009001130	640
SC12YS	10	12.5	11	13.7	60	YD385	14.4	245	15206701110	500	17009001130	650
SC14YS	11	13.7	12	15	60	YD385	14.4	245	15206701110	520	17009001130	710
SC15YS	12	15	13.2	16.5	60	YD480D	17	240	15206701110	520	17009001130	710
SC17YS	14	17.5	15.4	19.3	60	YD480D	17	240	15206701110	525	17009001130	715
SC19YS	15	18.8	16.5	20	60	YD4KD	18	240	15206701110	540	18009001130	740
SC10YS	16	20	17.6	22	60	YND485	20	230	15406701110	560	18009001130	760
SC25YS	20	25	22	27.5	60	YSD490D	25	225	15407501130	586	20609101150	780
SC30YS	24	30	26.4	33	60	Y490H	28	225	16607501130	610	20609101150	840
SC37YS	30	37.5	33	41	60	Y4100D	37	223	17007501130	700	20609101150	880
SC40YS	32	40	35.2	44	60	Y4102D	39.6	220	17007501130	720	20609101150	906
SC50YS	40	50	44	55	60	Y4102ZD	48	215	17407501130	793	22001001200	1100
