Basic Info.
Automatic Grade
Automatic
Application Place
Factory
Applicable Thickness
Middle Thickness Material
Needle Number
Twelve Needles
Embroidery Type
Towel Embroidery, Patch Embroidery, Clothing Embroidery, Hat Embroidery, Flat Embroidery
Embroidery Area
400*500mm
Name
T-Shirt Computerized Embroidery Machine
Key Selling Points
Automatic
Machine Type
Computer Cap Embroidery Machine
Overall Dimensions
1200X1210X1630mm
Type
Flat Embroidery Machine
Product Name
Two Head Embroidery Machine
Transport Package
Wooden Package
Production Capacity
1000PCS/Year
Product Description

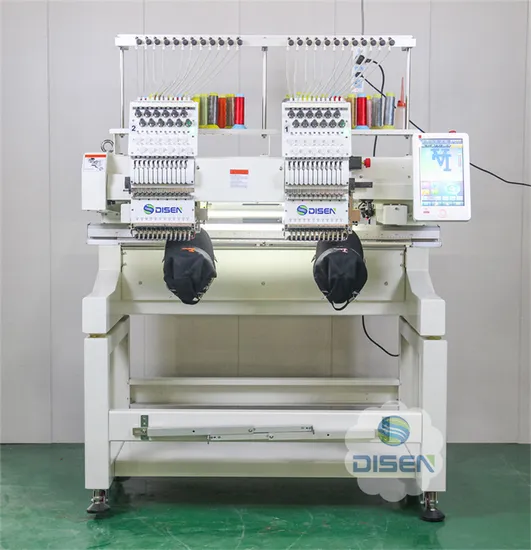

Product Description Specification MODEL: 1202 2 Heads 12 Needles Embroidery Machine
1. Suitable for flat embroidery, cap embroidery and finished garments embroidery, T-shirt embroidery, logo embroidery etc.
2. Embroidery area: 400*500mm 3. Controller: 10" Touch Screen Dahao A15 System,User-Friendly Interface
4. High speed specialized cap embroidery heads,with double cam,double lever, by motorized jump.
5.Automatic thread trimmer
6. The running speed:100- 1200rpm
7. 260 degree Wide cap frame unit
8. Automatic color change and thread break detection
9. Start, Stop and emergency Stop Button
10.Design Tracing Available
11.One-Step Tracing
12. 10'' touch screen display control pannel, showing real time stitching
13. Memory size: 500 Patterns,200 Million stitches
14. Computer Reads Multiple Design Formats.Such As DST.DSB And More.
15. USB port
16.Networkable And Wi-Fi capable
17. Control system can be updated easily
18. Multi-languages:Chinese, English, Spanish, Turkish, Russian.. French, Portuguese, Arabic,Thai, Italian,German, Dutch,Polish
19. Electricity: 110V/60Hz or 220V/50Hz
20.Selfadaptable worldwide available
21.Equip With Laser Positioning(Unit price 15 $ )
22.Woodencase Packing.
23.Machine Size: 1200x1210x1630mm Packing Size:1480x1030x1050mm
24.Net Weight:310KG Gross Weight:400KG
Note: For custom-made machines, the quotation needs to be quoted according to customer needs. Please contact the salesperson for details.
Other related product parameters
| Product name | Mini 12 needles single head embroidery machine |
| Number of needles | 12 needles |
| Number of heads | single head |
| Electronic control | Dahao |
| Maximum number of stitches per pattern | 5 million stitches |
| Pattern | DST format |
| Working area | 20*30CM |
| Pattern storage | up to 200 million needles |
| Number of memory patterns | 500 |
| Speed | 1000 rpm |
| Gross weight | 50KG |
| Net Weight | 45KG |
| Packing size | 650*575*773mm |
| Warranty | 1 year |
| Accessories | Factory standard |
| Voltage | 100-240V |
| Model | DSC-J1201/J1501 | DSC-J1204/J1504 | DSC-J1206/J1506 |
| Head | 1 | 4 | 6 |
| Needles | 12/15 | 12/15 | 12/15 |
| Working Area | 500*350mm | 400*450mm | 400*450mm |
| Computer | Dahao A15 | Dahao A15 | Topwisdom 512 |
| Speed | 1200 RPM | 1200 RPM | 1200 RPM |
| Machine Size | 1090*750*1530mm | 1920*1320*1630mm | 2720*1320*1630mm |
| Packing Size | 850*835*900mm | 2180*1110*1000mm | 2910*1160*1510mm |
| Net Weight | 150KG | 450KG | 850KG |
| Gross Weight | 180KG | 590KG | 1070KG |
>>
