4000-5000bph 50ml-2L Plastic Drinking Water Can/Container Pet Bottle Blow Molding Machine/Blowing Moulding Making Machine

Product Description

4000-5000bph 50ml-2L Plastic drinking Water Can/Container Pet Bottle Blow Molding Machine/blowing moulding making machinery
model:q6000

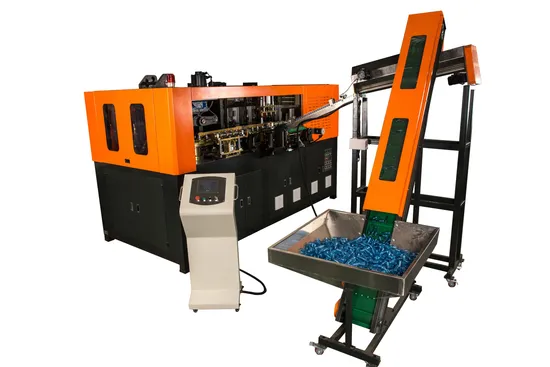

Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Specifications
1),Volume: 50ml-2L
2),material: PET
3),full-automatic
4),output: 4000-5000pcs/hour
5),4 cavity fully automatic pet blowing machine

Features of main body :
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
Specifications

TYPE	ITEM	UNIT	(TWO CAVITY)	(FOUR CAVITY)	(SIX CAVITY)
Container	Product material	PET	PET	PET	PET
	Container volume	L	0.05-2.0L	0.05-2.0L	0.05-2.0L
	Theoretic output	Psc/hr	1800-2200	3500-4200	5000-6000
	Preform length	MM	50-200	50-200	50-200
	Max height of bottle	MM	320	320	320
Molding	Preform inner diameter	mm	15-60	15-60	15-60
	Bottle diameter	mm	35-110	35-110	35-110
	Max mold thickness	mm	250	250	250
Air compressor	High pressure compressor	Bar/Mpa	1.0/30 × 2sets	1.0/30 × 3sets	1.0/30 × 4sets
	Locking force	KN	170	600	900
	Mold opening stroke	mm	200	200	200
	Low pressure compressor	Bar/Mpa	2.0/30 × 1set	2.0/30 × 1set	2.0/30 × 2sets
	Air dryer	M3/Mpa	2.0/30 × 1set	2.0/30 × 1set	3.0/30 × 1set
Main machine electricity	Power	KW	15	25	30
	Voltage / frequency	V/Hz	380-110V/50-60hz	380-110V/50-60hz	380-110V/50-60hz
Machine size and weight	Main machine (L × W × H)	M	2.3 × 1.4 × 2.0	3.6 × 1.7 × 2.0	5.0 × 1.9 × 2.0
	Main machine weight	T	1.8	2.8	3.8
	Conveyor (L × W × H)	M	1.4 × 1.1 × 1.85	1.4 × 1.1 × 1.85	1.4 × 1.1 × 1.85
	Conveyor weight	T	0.2	0.2	0.2
	High pressure compressor (L × W × H)	M	1.90 × 0.75 × 1.50 × 2set	1.90 × 0.75 × 1.50 × 3sets	1.90 × 0.75 × 1.50 × 4sets
	Low pressure compressor (L × W × H)	M	1.85 × 0.75 × 1.50×1set	1.85 × 0.75 × 1.50×1set	1.85 × 0.75 × 1.50×1set
	air tank (D × H)	M	0.70 × 2.25/3.0	0.70 × 2.25/3.0	0.70 × 2.25/3.0
	Air dryer (L × W × H)	M	0.85 × 0.50 × 0.95	0.85 × 0.50 × 0.95	0.85 × 0.50 × 0.95
	Air filters	Kg	10 × 3pcs	10 × 5pcs	10 × 6pcs

TECHNICIAN TEAM
FAQ
1.Your company is a trading company or a direct factory?
We are a direct factory located in Zhangjiagang City. Very close to Shanghai and Wuxi (airport and train provided). If you arrive in Shanghai or Wuxi, we can pick you up to visit our factory.
2.If we buy your machine, what is your guarantee or guarantee of quality?
We provide you with high-quality machines with 1-year warranty and lifetime technical support.
3.How to ensure the safety of your funds and deliver on time?
1/Through ******'s letter guarantee service, it will ensure on-time delivery and the quality of the equipment to be purchased.
2/Through the letter of credit, you can easily lock the delivery time.
3/After visiting the factory, you can ensure the authenticity of our bank account.
4.Check how ECENG MACHINE ensures quality!
1/In order to ensure the accuracy of each part, we are equipped with various professional processing equipment, and we have accumulated professional processing methods in the past few years.
2/Each component before assembly needs to be strictly controlled by inspectors.
3/After all equipment is completed, we will connect all machines and run the entire production line for at least 12 hours to ensure the stable operation of the customer's factory.
ATTE:ZOE XU
warmly welcome to visit our factory!

---
