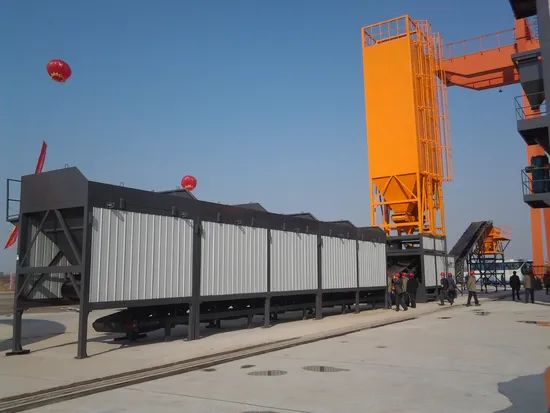

Australian Technology Stationary Stabilized Soil Cement Mixing Plant W500d

Product Description

TECHNICAL SPECIFICATIONSW500D Soil Cement Mixing Plant
W500D continuous mixing plant are the most advanced based on technology transferred from Aran, which is suitable to mix kinds of concrete
commodity, lime stabilized soil, concrete disposal roadbed and the construction of high-grade road, airport, city road and so on.
Main technical parameter
Throughput 500t/h
Motor Power 75kW
Agg. Metering Accuracy ±2%
Filler Metering Accuracy ±1%
Water Metering Accuracy ±1%
Loading height 3.2m
Discharge height 3.52m
Agg. Hopper Capacity 6m³/pc
Silo Capacity optional 50t, 60t, 80t
Control mode: computer controls, auto & manual operation, reports printing, air-condition room.
Remark: The above throughput is precise when mixing concrete. It is possible that the throughput are a little reduce if you mixing other mixture.
Main Components & systems
Agg. supply system
Agg. hopper: Four, Belt feeder: Four
Feeding capacity 60- 200t/h
Feeding adjustment mode: bin gate + accuracy electromagnetism adjustable motor
One adjustable motor adjustable aggregate conveyor
Filler feed system
Cement silo: One
Aran patent filler feeder: One
Feeding adjustment mode: accuracy electromagnetism adjustable motor, closed.
Divide tank belt, adjustable motor adjust speed.
Water supply system
One water pump control water supply accurately
Metering adjustment mode: accuracy electromagnetism adjustable motor, control water very accurately.
Mixer
Structure mode: double shaft horizontal type forced mixer, the construction is new wearable type, without lining, mixing blade is alnico and
replaced quickly the both ends.
Model: APMM-480M
Motor power: 75kW
Mixed material capacity 8m3
Discharge height 3.52m
Control system
Model mode: PLC industry controller
Control mode: manual & auto program control
Metering control: adjusting by accuracy electromagnetism adjustable motor, detect belt speed by adjacent switch precisely, and then feed back to
computer working-out metage unit.
Monitor system and manage all kinds of information, data by computer.
Control room
Control room with central air-conditions.
Performance character Cordwood module design Rapid relocation and easy move, quick redesign available if requested by customer.
Main supply mode: Agg. Feed four hoppers, five hoppers and six hoppers.
Silo: one silo, two silos.
Main special device: broken crown device, screening device and so on.
2. Reasonable layout
Compact configuration, easy and convenient replaces.
3. High-quality mixing performance
Double shaft horizontal type forced mixer, the wearable mixer of Aran APMM is high intensity, big capacity. Wearable alnico blade, multi-blade
mixing completely and quickly. It can get good mixing effect.
4. Accurate metering
Accurate electronic adjustable motor, capacity metering or weighting metering by compute, accurate feed calibration. Feed metering is equality,
stabilization,precision. Concrete,filler feeder use special Aran patent ABFC, and offer high-quality cement, filler metering accurately.
5. Control by PLC industry controller
Reliably controlled by PLC with auto & hand modes, displaying production progress and setting ingredient proportions, accurate and easy
adjustment, safety alarming emergency stop system.
6. Monitor system and manage all kinds of information and data by computer
There are enough many recipe document and customer document in computer for used by customer. Strong function of printer, it can print daily
report, accumulate report, and print report classified by different recipe and customer.
Computer saves all kinds of working information and actual consume information of every material for used and consulted by customer.
The list of manufacturers of main components

Item	Description	Quantity	Supplier
1	Agg. supply module(four hoppers)	1
	Including: Agg. hopper
	Agg. feeder
	Aggregate conveyor
	Steel frame, color steel plate closed
	Adjustable-speed motor
	Reductor
	Carrier roller
	Rubber belt
2	Filler supply module	1
	Including: Silo body
	Filler feeder
	Adjustable-speed motor
	Reductor
	Rubber belt
	Head,end roller and sweeper
3	Mix module	1
	Including: Tray
	Forced mixer
	Electric motor
	Reductor
	Shaft-joint
4	Water system	1
	Water pump		Sweden JOHNSON5
	Control system	1
	Computer control software
	PLC program controller		Japan MITSUBISHY
	Air switch		France SCHNEIDER
	Contactor		France Technique
	Printer		LENOVO
	Control room
	Air-conditions

Note: All the technical specifications mentioned above will maybe change as the technology development. Please refer to the final offer.

---
