CABLE TRAY ROLL FORMING MACHINE

Product Description

Product Description

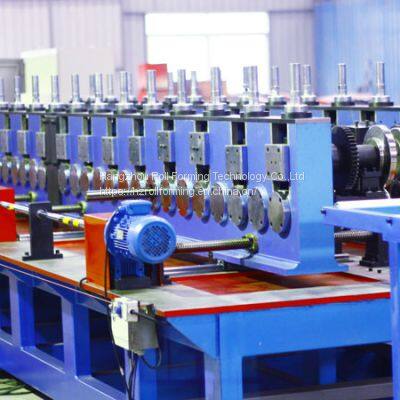

Well designed by engineers at Hangzhou Roll Forming Technology, this series of cable punching machines can produce cable trays and caps from 50-350mm. It can conduct fast and easy operations between different sizes. Adopting cantilever shafts forming structure, the forming tooling of our cable tray roll forming machine china is assembled on cantilever shafts. When you need to change sizes, you will just need to change spaces between left/right shafts without changing any spacers station by station. Moreover, both manual and motor adjusting modes are available for choices and combined cutting blades are also adopted into the design of our galvanized cable tray roll forming machine.
Suitable Coil Sheet Material for Cable Tray Roll Forming Machine

Suitable material	Galvanized Steel
Barrier Thickness	0.5-0.7/0.8-1.2 (mm)
Yield Strength	230-300 (MPa)
Width	as profile requests

Production Line Components and Parameters of cable tray roll forming line

1. Decoiler:	3t/5t/8t/10t
2. leveling device
3. Holes punching device
4. Servo Feeding Device
5. underground pit/ overground accumulating unit	optional
6. feeding and guiding device
7. Roll forming system	20/min; line production speed: About 11m/min
8. cutting to length device
9. Micro-step enlargement device
10. logo printer
11. Output Automatic supporter
12. Electric control system	MITSUBISH/ SIEMENSE/AMS/Omron (optional or as requested )

Working Flow Of Cable Tray China Roll Former
Decoiler & leveling unit - Steel sheet sensor - Punching system - Ervo feeding system - Underground pit / overground accumulator - Feeding table and guiding unit - Roll forming system - Cutting to length - Micro-step enlargement device
Cable Tray & Cover Profile Drawings
Finished Cable Trays by Cable Tray Roll Forming Machines
Specification Of Cable Tray Roll Forming Machine

Machine Condition	Fully New, A-Grade quality
Panel Shape	As profile drawing and customer’s requirements
Operator needed	1-2 people
Power Supply	220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment Weight	About 25t
Dimension	(L*W*H) about 32*3*2m
LOADING SIZE	Normally need 2 x 40' (+1x20’) container.
Equipment Color	Normally Blue/White, or as requests;
Place of Origin	Zhejiang, China (Mainland)
Packing	Standard and careful export packing

As one of cable tray roll forming machine manufacturers, we provide types of roll forming machine for sale, if you have needs, please contact us.

---
