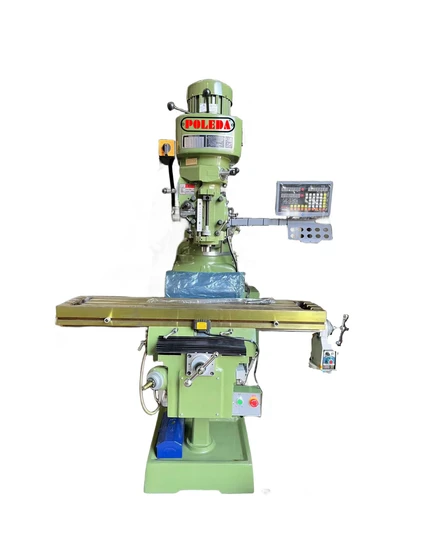

Poleda 4m Universal Milling Machine with R8/Nt30 Spindle Factory Direct Sales

Product Description

Product Description
A milling machine is a sophisticated machine tool that meticulously cuts material on machined parts using a rotating tool. As one of the most widely utilized machines in metal cutting processes, the milling machine boasts the versatility to handle plane, surface, and gear parts. It is also adept at performing drilling, reaming, boring, and an array of other intricate processes.
Basic Structure of a Milling Machine:
The fundamental structure of the milling machine encompasses several key components: bed, sliding table, workbench, horizontal shaft, column, beam, guide rail, motor, and more.
1. Bed: The bed is the foundational support element of the milling machine, responsible for carrying various components. Typically cast, the bed ensures exceptional stability and robust rigidity.
2. Slide Table: The slide table is a dynamic part of the milling machine, capable of moving back and forth on the bed. Equipped with a workbench and a horizontal shaft, the slide table enables precise positioning and processing of the machined part by its movement.
3. Workbench: The workbench serves as the operational platform of the milling machine, designed to grip and secure the machined part. The table offers rotational, tilt, and other adjustments as needed to accomplish complexmachined partprocessing.
Product Parameters
Structural characteristics
1. The base, fuselage, workbench, middle slide seat, lifting slide seat, and other primary components are crafted from high-strength materials.
Each component undergoes artificial aging treatment to ensure long-term stability and durability of the machine tool.
2. The milling head features a turret milling head, and the main spindle supports manual and micro feeding methods, providing convenient and precise processing.
The milling head can be adjusted ±45° vertically and 360° horizontally, significantly expanding the machining range.
3. The vertical and horizontal table offer three feeding modes: manual feed, mobile feed, and fast feed. The mobile feed supports eight different speed settings.
This versatility meets diverse processing requirements, while the fast feed quickly positions the workpiece, reducing non-machining time.
4. The lifting platform Z-lifting can be operated manually or automatically, with interlocking systems to eliminate unsafe factors.
5. The table's X-direction travel extends up to 800mm. The X, Y, Z guide pairs are treated with ultra-audio quenching, precision grinding, and scraping.
These treatments enhance accuracy and significantly prolong the machine's service life.
6. A manual lubrication device ensures forced lubrication of the longitudinal, horizontal, and vertical lead screws and guide rails, minimizing wear and ensuring efficient operation.
Simultaneously, the cooling system allows adjustment of the coolant flow through the nozzle to meet various processing needs.
7. The machine tool operating system is ergonomically suspended on the upper right side via a support arm, making it easy to operate.
The operation panel features intuitive figurative symbols for simple and straightforward use.
8. The turret milling machine spindle options include R8, NT30, and NT40.
9. The machine is equipped with an enhanced electrical box and controller, featuring 110V and 220V output sockets.

Product Name	Milling machine
Product model	3M/3S/4M/4S
Product technical parameters
dimension	Table size	1270*254MM
journey	Left and right stroke(X)	740MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	360MM
	Arm reach	520MM
	Distance from spindle end face to table surface	50-410MM
	Table bearing	300KG
Principal axis coefficient	Spindle taper	R8
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	3HP
Milling head	Milling head tilt Angle	45° front and back
Lead screw	Three-axis screw diameter	Tr32mm
	Three-axis lead screw pitch	5mm
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*65MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1280kgs
disposition	Accessories name	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	Clamp plate	1
	11, chuck	1

Detailed Photos
Our Advantages
Packaging & Shipping
Certifications
FAQ
1.What is the MOQ for your production?
A. The Minimum Order Quantity (MOQ) depends on your requirements for color, logo, and other specifications. For some standard items, which we keep in stock, the MOQ is just 1 set.
2.How to control the quality of the products?
A. We have always placed great emphasis on maintaining high-quality standards. Moreover, the principle we consistently uphold is to provideour customers with superior quality, competitive prices, and excellent service.
3.What's the main product line of your company?
A. We specialize in a wide variety of machines, including CNC Machines, Lathe Machines, Milling Machines, Grinding Machines, Vertical Machining Centers, DrillingMachines, Radial Drilling Machines, Sawing Machines, and much more.
4. What are your trade terms?
A. We accept Ex-works, FOB, CFR, and CIF terms.
5.What are your Payment Terms?
A. Our payment terms are T/T, with a 30% initial payment when placing the order and the remaining 70% balance payment before shipment.
6.What CNC system do you use?
A. We offer a variety of CNC systems including FANUC, SIEMENS, MITSUBISHI, SYNTEC, and HCN. The choice depends on your specific requirements.
7.How can I choose the most suitable machines?
A. Please send us the product drawings and application details, and we will help you choose the most appropriate machines.
8.What kind of packaging do you offer?
A. We typically use plywood cases to ensure all goods are in perfect condition. Customized packaging options are also available upon request.
9.Can your plant handle OEM?
A. Yes, we can handle both OEM and ODM for any customer requirements. 10.How about the warranty?
A. Our warranty period is one year after delivery. Even beyond this period, we offer lifetime service for our machines.

---
