Wafer Fab Semiconductor Device Fabrication Fab Feol Beol MD-OE0214 Optial Edger

US$3,000.00-6,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
MD-OE0214
Condition
New
Transport Package
1000mm*1100mm*1600mm
Specification
1000mm*1100mm*1600mm
Trademark
minder-hightech
Origin
Guangzhou
HS Code
8015809090
Production Capacity
200PCS/Yearpcs/Year

Product Description

Product Description
Inner diameter slicer and optical edger Product description:MD-OE0214 Optial edger

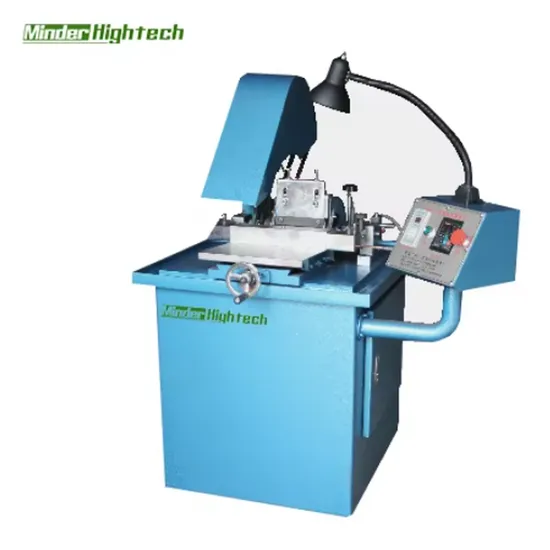

OPTICAL EDGER
(square to circle grinder)
Details
The optical edger is a device to grinding the square material to circle material. This machine is widely used in material of optical glass, semiconductors, crystal, ceramic, NdFeB magnetic material.
Grinding principle is : by rotating the diamond wheel and the guide wheel , the square material grinding to circle shape.
We have the semi-automatic/fully automatic type by optional the vibration bowl feeder, but optional the vibration bowl feeder has some requirement , which is the size should be between 2-6mm, and length should be less than 50mm.
For the Automatic one, one operator can manage more
MD-OE0214
Main technical parameters
Max input size(mm): square material :14*14mm, round material:φ18mm
Min output size: φ2mm
Grinding length: 10-50mm
Grinding speed: 600-800mm/min
Grinding accuracy(mm): un-roundness coast grinding:+-0.04 fine grinding:+-0.02
Guide wheel transverse stroke: 80mm
Guide wheel vertical stroke: 25mm
Main motor ac 380V,50Hz,1.5kw 1460 r/min
Vice motor: 1.1kw 0-1200r/min
Size: 900*800*1200mm
Weight: 550kg
