Mining Use Pz-3 Concrete Dry Mix Concrete Shotcrete Machine

Product Description

Product Description
Construction Mining Tunneling Pz-3 Dry Mix Concrete Shotcrete Gunite Machine is a widely used guniting machine for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
Refractory spraying and repair for industrial kilns or kilns' inner liner
Parameter of Mining use Pz-3 Dry Mix Concrete Shotcrete Machine

Model		PZ-3	PZ-5	PZ-7	HSP-5	HSP-7	HSP-9
Output		3.5m3/h	5m3/h	7m3/h	4.0-5.0m3/h	5.0-7.0m3/h	6.0-9.0m3/h
Max. Convey distance	Horizontal	200m	200m	200m	30-50m	30-50m	30-50m
	Vertical	20m	20m	20m	20m	20m	20m
Water cement ratio		≤0.4	≤0.4	≤0.4	≤0.4	≤0.4	≤0.4
Max. Aggregate. size		Φ20mm	Φ20mm	Φ20mm	Φ15mm	Φ15mm	Φ15mm
Hose inner size		Φ38mm	Φ51.mm	Φ64mm	Φ51mm	Φ51/64mm	Φ51/64mm
Operating air pressure		0.4~0.6MPa	0.4~0.6MPa	0.4~0.6MPa	0.3-0.6Mpa	0.3-0.6Mpa	0.3-0.6Mpa
Air consumption		3-4 m3/min	7-8 m3/min	12-15 m3/min	10.0-15.0m3/min	10.0-15.0m3/min	10.0-15.0m3/min
Rotor diameter		350(150)mm	438mm	480mm	438mm	480(160)mm	480(175)mm
Voltage		380v or as your requirement	380v or as your requirement	380v or as your requirement	380v or as your need	380v or as your need	380v or as your need
Overall dimension mm		1040*550*940	1280*700*1280	1600*700*1150	1280*700*1280	2000*800*1300	2000*800*1300
Whole weight		550kgs	600kgs	900kgs	700kg	800kg	900kg

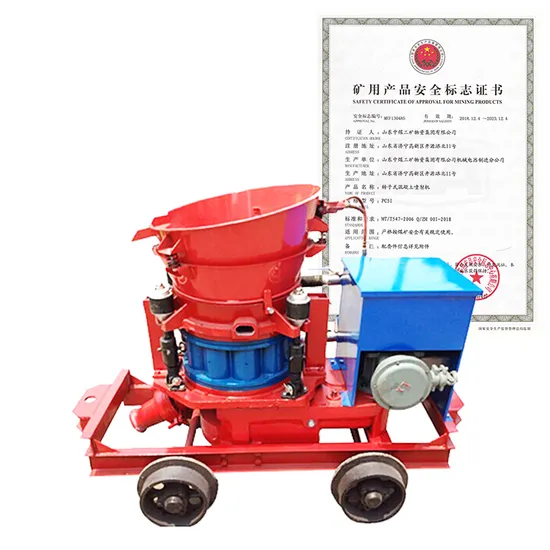

Images of Mining use Pz-3 Dry Mix Concrete Shotcrete Machine

---
