Drill Press Z3040 Z3050 Hydraulic Clamping Radial Drill for Sale with Overseas Service High Quality Radial Drill for Metal Low Price Steel Drilling Machine

Product Description

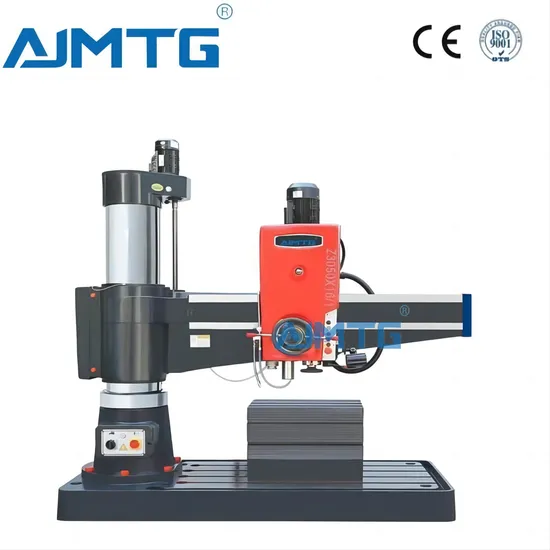

Product Name: RD50/40/35/32/25 Radial Drilling Machine
Features:
Radial drilling machine is easy to operate, flexible, wide in use, typical especially for porous large workpieces in hole machining in batch production, generally common machine tools for machining in workshop.
1. Hydraulic radial drilling machine
(1)Hydraulic preselection speed change mechanism can save time to promote efficiency.
(2)Spindle rotation direction, parking ( brake ), speed change, neutral etc, with one handle control, easy manipulation.
(3)Headstock, rocker, inside and outside of the colume by hydraulic drive clamping mechanism, reliable firm clamping.
(4)Rocker on the rails, spindle sleeve and inner and outer raceway, etc. Are after quenching, extend service life
(5)Headstock move by manual or automatic
(6)A perfect safety protection devices and external columns protection and automatic lubrication device.
2. Mechanical radial drilling machine
Elegant appearance, the overall layout symmetry coordination.
Key precisely machined parts precision machining, high precision; High strength, careful in details excellent manufacturing, flexible &reliable structure with long using life to ensure that the machine precision persistence.
The UHF hardened guilde rails
Double-speed motor.
Mechanical drive, mechanical clamping, mechanical speed change and easy operation.
Radial movable 360 degree around colume, automatic free up and down movement, spindle can automaitc feed with high production efficiency.
Swith freely of clockwise and counter-clockwise rotation.
Which has a wide range of application, are suitable for drilling, counter-boring, reaming,
Wide range of application, are suitable for drilling, counter-boring, reaming, spot-facing and tapping on large and medium size factory, Towns and individual industrial machining.

Description	Unit	RD80×25	RD60 × 16	RD50 × 16	RD50 × 13/16	RD40 × 10/13	RD35/40 × 10/13	RD35 × 10	RD 25/32 × 9/10
Max. drilling diameter ( steel/cast iron )	mm	80/105	60/72	50	50	35/40	35/40	35	25/32
Distance between the spindle center line to column center line	mm	450-2550	350-1600	350-1600	360-1300/1600	360-1000	300-1000	3 00- 1 0 00	260-900
Distance between spindle end face to the machine bottom table	mm	400-1620	350-1250	350-1250	260-1050	260-1050	260- 1 0 00	260- 1 0 00	220- 1 1 00
Max. spindle travel	mm	400	315	315	220	200	280	180	120
Spindle taper		ISO50	ISO50	ISO50	ISO50	MT4	MT4	MT 4	MT4
Steps of spindle speed		8steps	8 steps	25-2000	6 steps	6 steps	6 steps	6 steps	6 steps
Motor power:	kw	7.5	4	4	1.5	2.2	2.2	2.2	1.5/2.2
Machine weight (N/G)	kg	7400	3800	3500	2800	1500	1500	1100	900/1000
Machine dimension	mm	3590x1260x3530	2490× 1050× 2600	2500 × 1070 × 2620	2150 × 860 × 2450	1500 × 705 × 2300	1500 × 705 × 2300	1450 × 700 × 2050	1400 × 710 × 1880

Export Certificate

---
