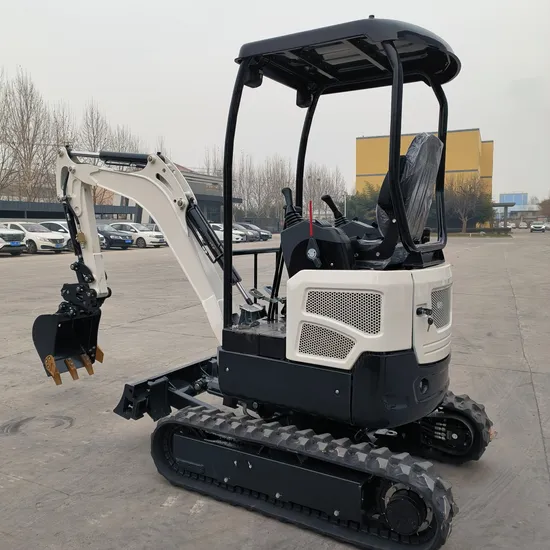

CE and EPA Approved Factory Smallest 1 Ton to 2 Ton Hydraulic Crawler Mini Digger Excavators

Product Description

Product Description
Product Feature And Advantage

1.Small size and easy to transport, could be loaded onto light truck or small trailer, four sets could be loaded into one 20GP container to save freight cost.
2.Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency
3.Famous brand hydraulic system parts ensure the stable quality.
4.equipped with double fuel filter to guarantee fuel purity to protect engine.
5.boom deflexion design meet narrow work condition, reinforced rubber track to protect road
6.extend hydraulic line for various attachments.
7.comfort seat make operator easy to work.
8.Cabin with heater is optional.
9.Could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, papermaking factory etc. and could replace 4~5 manpower.
Detailed Photos
Product Parameters

ENGINE
Emission Standard	Tier 3/ Stage III
Make	LAIDONG
Model	3TE25
Power /Rotation speed	18.4kw(25HP)@2350rpm
Number of cylinder	3
TRACK SYSTEM
Maximum Travel speed	2.5km/h
Width of track shoe(Rubber & steel track)	230mm
Number of track shoe per side(Steel track only)	38 pcs
Number of upper roller/ bottom roller(per side)	0/4
PERFORMANCE PARAMETER
Standard bucket capacity	0.06m³
Swing speed	10~12 rpm
Max. Grade ability	35°
Max. Bucket digging force	14KN
Max. Arm digging force	10KN
Hydraulic system pressure	18Mpa
Machine weight	1800kg
MACHINE SIZE
Overall dimension (L*W*H)	3865mm*1050mm*2270mm
Axle base(Track length on ground)	1230mm
Track gauge	820mm
Min.Ground clearance	210mm
Swing radius at tail	1125mm
WORKING RANGE
Max. Digging height	3365mm
Max. Dumping height	2385mm
Max. Digging depth	2050mm
Max. Vertical digging depth	1725mm
Max. Digging radius	3860mm
Min .swing radius	1720mm
Max. Lifting height of blade	230mm
Max. Cutting depth of blade	275mm
Boom swing angle(Left)	75°
Boom swing angle(Right)	45°

Certifications
Packaging & Shipping
Company Profile
Company Profile
Founded in 1999, Shandong Yineng Heavy Industry Co., Ltd is a large-scale construction and agricultural equipment manufacturing enterprise integrating R&D, production and sales. The company has more than 400 employees, 8 senior engineers and 12 professional technicians. The products cover wheel loaders, underground mining machine, grass grabber, off-road forklift and etc, with 7 series, more than 100 models and equipment in total. Yineng has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center.
The company has been invited to participate in large-scale international exhibitions such as the Canton Fair, the Hanover Agricultural Machinery Exhibition in Germany, and the Bauma Fair for more than ten years. With first-class technical standards, top-notch manufacturing processes and personalized customization services, Yineng has established a broad customer network around the world, with customers all over Germany, Russia, Brazil, Iran, Saudi Arabia, Australia, Thailand, South Africa, etc. More than 40 Many countries and regions.
FAQ
1. who are we?
We are based in Shandong, China, start from 2009,sell to Domestic Market(82.00%),South America(5.00%),Southeast Asia(5.00%),Oceania(5.00%),Mid East(3.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Wheel loader/Mining Machinery/Forklift/Excavator
4. why should you buy from us not from other suppliers?
We have 20 years of professional experience in designing and producing loaders with1-6 tons capacity, for engineering, agricultural, mining virious use. Our products features reliable quality, good after-sales service, reasonable price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,DAF;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Chinese,Spanish,Russian

---
