Environmentally Friendly and Degradable Roll Paper Cup Lid Making Machine

Product Description

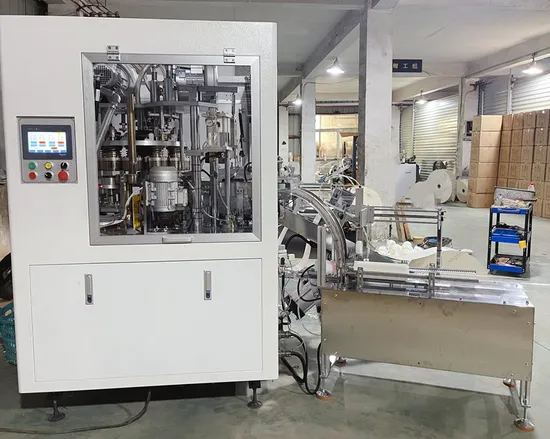

KD-ZG100 Automatic Disposable Environmental Protection Paper Cup Lid/Cover/Cap Making Forming Machine
Automatic paper lid/cover forming/making machine is used to produce a variety of shapes of coil paper cover.
It is suitable for disposable cup lid made of rolled tube paper, ice cream cup lids, coffee cup lid milk tea cup lid, etc.
Automatic paper cover forming machine adopts sophisticated forming process, complete a variety of forming process,
completely replace manual operation procedures. The equipment is stable and the production efficiency is high.
It can realize the operation of one person and one machine to a great extent. Save raw materials, low energy consumption.
Advantage: Roll paper one-time completion of die cutting, indentation, molding, finished products in one machine, speed according to cover size from 70-100pcs/min. It is the best choice of disposable paper cover machine.
Technical Parameter:

Machine model	KD-ZG100
HS code	8441309000
Paper material	One & Two side PE/PLA coated paper, glossy coated paper
Paper weight	250~350 gsm
Lid/Cover size	Diameter 55~100 mm & 100~145mm
Lid/Cover Height	8~15 mm
Speed	70~100 pcs/minute
Power Source	AC 380V 3-phase, 50Hz
Total power	10KW
Weight	2500KG
Machine size	2600*1500*1800mm
Air requirement	Consumption 0.02cubic meter/minute, Pressure:0.3MPa

---
