Solar Structure Bracket Strut Channel C Solar Panel Roll Forming Machine PV Solar Bracket Roll Forming Machine

Product Description

Product Description
Application

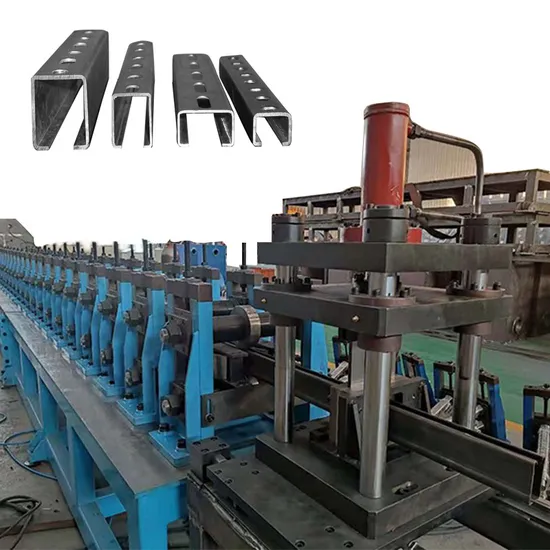

This machine can achieve high efficiency punching&roll forming of the solar strut channel,which widely used for solar mounting structure industry.
Process of the line
Uncoiler→leveler--- servo feeder→punching station→roll forming unit →hydraulic shear→finishedproducts
Main Components
1. Uncoiler 1 set
The machine is in single head mode.The tensioning structure is connecting rod type, the working state is stable and reliable The uncoiler is equipped with pneumatic brake
2. Servo motor leveler and feeder 1 set
Usage :According to the actual punching required step length into the sheet material, can set multiple feeding parameters at one time, convenient and fast.Accurate feeding accuracy without cumulative
3. Punching Unit 1 set
Structure :Whole Frame welded hydraulic press, economical and applicable, fast speedThe hole spacing c an be adjusted in the transverse direction of the plate, and the step spacing can be changed through t he electrical control system
4. Roll forming machine 1set
Structure: The molding unit adopts independent stand ( archway stands mode).Motor, reducer drive, chain d riven type
Parameters:Archway stands : 20 sets
Forming shaft: φ70mm(according to final drawing)
Motor power:approx..22KW(according to final drawing )
Max. line speed:5~15m/min
Detailed Photos
WorkPiece
Solar Structure
Product Parameters

Raw Material	Hot rolled low carbon steel
Raw material yield strength	235Mpa
Coils OD	≤Ф1200 mm
Coils ID	Ф508mm
Coils width	≤250mm
Strips thickness	1.5~2.5mm
Coil weight	≤2500 kg
Overall size of the line:	25000X3000X1800mm

MACHINE ADVANTAGE:
1.We adopts individual archway stands for rollers station, more strong and rigidity structure than other suppliers in china.
2.Individual gearbox for each archway rollers set, to assure the precision of the profile.
3.All of the machine main body and parts are quenched, with higher hardness(HRC58-62) and wear resistance, while other suppliers only rough steel welded.
4.The rollers material is American D2 and D3 standards, with long service life and low maintenance cost.
5.Professional Germany roller design software-Copra.
6.Our price is most reasonable based on the top quality in this field.
7.Long machine life, all of our machines can be used stable performance for more than 10-15 year, while other small and low quality supplier's machine only can be used for 1-2 years.
Packaging & Shipping
1 Lifting the machine into container
2 Disassemble and pack with film for anti-humidity
3 Machine trial before dispatch
4 Loading the packages to container
5 Fix with steel wire ropes in container to avoid damage
6 Close and sealthe container
7 Transport container to the port
8 Ships and our machines go to the destination port

Company Profile
Our workshop started since the year of 2008, built by a group of engineers, one of our founder member Mr. XU, who was worked as leader engineer for first-class roll forming department in SINOMRCH(China National Machinery Industry Corporation). After years of development, we have exported to many countries in the world such as Italy, Ecuador, America, India, Indonesia, Philipines, Brazil, Thailand, Vietnam, Russia, Malaysia, Peru, Korea etc., in order to service our clients overseas, we cooperate the local service agent to provide the after sale service; after more than ten years of running, we build the nice relationship with our clients and the local agent, those help us gain high reputation from our customers and the agents.

ENTERPRISE CERTIFICATE
INTERNATIONAL EXHIBITIONS
CUSTOMER VISITS
FAQ
♥1.How to operate the machine ?
We will deliver English manual and video with the machine to you. lf you still need our help,please contact us.
♥2.If some problems happen to this machine during warranty period, what should I do?
We will supply free charge of spare parts and regularly maintenance service during machine warranty period if machine have some problems. So any doubts, just let us know, we will give you solutions.
♥3.Does the machine can be customized according to my requirements ?
Yes, we have a strong technical team and have rich experience.
♥4. What about the package and shipment ?
The machine will be packaged by multilayer plastic wrap for anti-humidity on the sea. The strong steel wire roops will be used for fix the machines in container to avoid any damage in transportation.

---
