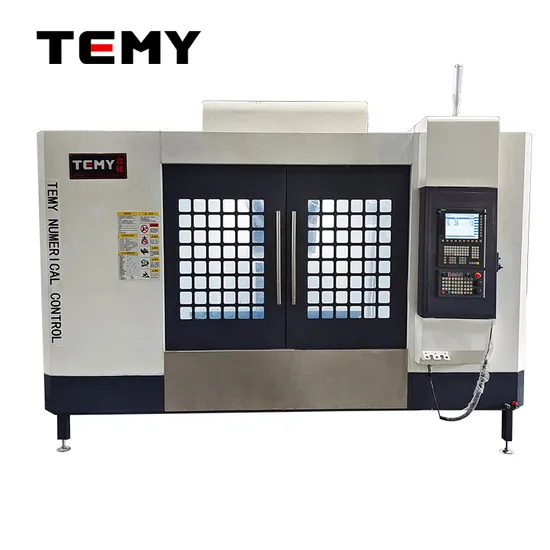

CNC Drilling and Tapping Machine Center with High Rigidity and Low Vibration

US$28,000.00-54,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
T20
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Model
T20
Item
CNC Drilling and Tapping Machine
Workbench Size
L2100mm X W700mm
Spindle Speed
20000 (Rpm)
Spindle Specifications
Bt30
X-Axis Displacement
2000mm
Y-Axis Displacement
750mm
Z-Axis Displacement
750mm
Rapid Feed
48 M/Min
Transport Package
Standard Exporting Package
Specification
3300x4200x3300mm
Trademark
TEMY
Origin
China
HS Code
8459210000
Production Capacity
500 Sets/ Year

Product Description

CNC drilling and tapping machine
Model: T20
This series of products are manufactured according to imported machine quality standards, with high stability, high speed and high efficiency drilling processing. It is widely used in 3C industry, electronic shell processing, aerospace, automotive small parts, medical equipment and other industries to process parts, shells, etc.
Parameter:
Model UNIT T20
X-axis travel mm 2000
Y-axis travel mm 750
Z-axis travel mm 750
Workbench area mm 2100*700
T-groove width mm 5*18*105
Max. load of workbench kg 700
Spindle taper hole / BT30
Spindle speed rpm 2000
Distance from spindle to worktable mm 120-870
Spindle center to slide rail surface mm 775
Rapid displacement m/min 24/48/48
Spindle motor kw 5.5
Mechanical weight kg 7500
