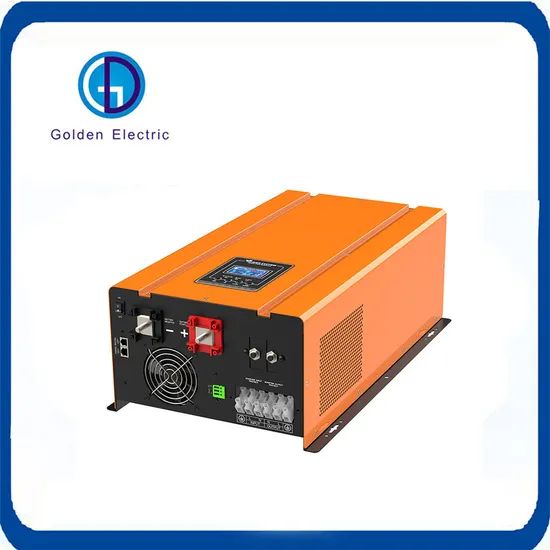

Low Frequency RP 3kw 3000W Pure Sine Wave Inverter 12V/24V/48V off Grid Solar Inverter for Solar Energy System

Product Description

Product Description
RP series is a pure sine wave power frequency inverter that converts direct current into alternating current. All-digital intelligent design, output pure sine wave, suitable for AC loads such as household appliances, power tools, industrial equipment, electronic audio and video.
Product Features
1.Pure sine wave inverter
2.Output power factor 1
3.Selectable high power charging current
4.Selectable input voltage range for home appliances and personal computers
5.Configurable AC/battery input priority via LCD setting
6.Compatible with generator power
7.Auto restart while AC is recovering
8.Overload and short circuit protection
9.Smart battery charger design for optimized battery performance
10.Cold start function
11.Color LCD display
12.Supports the use lithium batteries
13.Wave by wave phase detection,more stable and reliable
14.RS232 communicate port and Remote control panel optional
Protections:
Reverse polarity protection, impact protection, over temperature protection, low voltage protection, overload protection, short circuit protection, over current protection, high voltage protection.
Product Parameters

MODEL	RP 3000
Rated Power	3000W
INPUT
Voltage	100/110/120VAC;220/230/240VAC
Selectable Voltage Range	Wide Range :75VAC~138VAC;155VAC~275VAC (for home appliances) Narrow Range :82VAC~138VAC ;165VAC~275VAC (for personal computer)
Frequency	40-70Hz (50Hz/60Hz)
OUTPUT
AC Voltage Regulation (Batt Mode)	100/110/120VAC (±5V);220/230/240VAC (±10V)
Surge Power	9000VA
Efficiency (Peak)	91%
Transfer Time	<10ms
Wave form	Pure sine wave
BATTERY
Battery Voltage	12V	24V	48V
Charge Current	75A	35A	25A
Fast Charge Voltage	14.3VDC	28.6VDC	57.2VDC
Float Charge Voltage	13.7VDC	27.4VDC	54.8VDC
Battery Low Voltage Alarm	16.5VDC	33.0VDC	66.0VDC
Over Voltage Protect	10.5VDC	21.0VDC	42.0VDC
Battery Low Voltage Shutdown	10.0VDC	20.0VDC	40.0VDC
Protection	over charging,over temp,over battery voltage,over load,short-circuit
Operating Environment Temperature	55ºC
Cooling	Intelligent Fan
Display	LCD
Specification Setting	By LCD or position machine:Charging current,battery type,input voltage,output frequency,wide and narrow of AC input voltage,power-saver model,AC priority or battery priority
PHYSICAL
Dimension,(D*W*H)mm	500*258*190
Net Weight (kg)	25.2/24.6
ENVIROMENT
Humidity	5~95% Relative humidity (No-condensing)
Operating Temperature	-10ºC~50ºC
Storage Temperature	-10ºC~60ºC

Product Details
LCD Display
Overview
Connection
