Laboratory Precision Instrument 570had Universal Brinell Vickers Rockwell Hardness Tester Machine

Product Description

Product Description

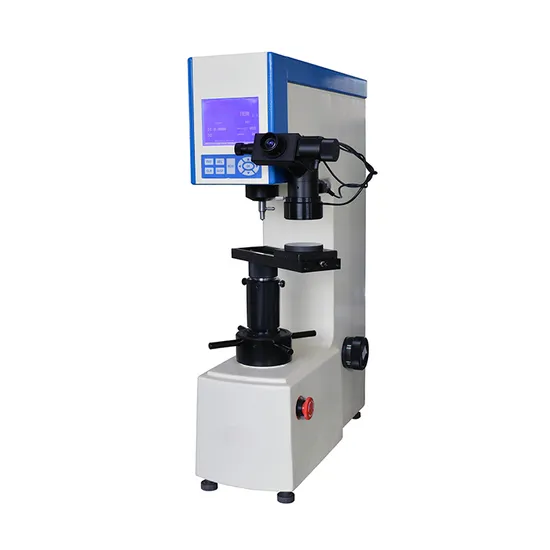

570HAD Digital Brinell Rockwell & Vickers Hardness Tester
Main Function
570HAD Digital Brinell Rockwell & Vickers hardness tester is equipped with a newly-designed large displaying screen with good reliability, excellent operation and easy watching, thus it is a high-tech product combining the optic, mechanic and electric features. It has Brinell, Rockwell and Vickers three test modes and 7 level of test forces, which can test several kinds of hardness. Test force loading, dwell, unload adopts automatic shifting for easy and fast operation. It can show and set the present scale, test force, test indenter, dwell time and hardness conversion; the main function is as follows: Selection of Brinell, Rockwell and Vickers three test modes; Conversion scales of different kinds of hardness; Test results can be saved for checking or be printed out, automatic calculation of maximum, minimum and average value; With RS232 interface for connecting to the computer.
Application range
Suitable for hardened and surface hardened steel, hard alloy steel, casting parts, non-ferrous metals, various kinds of hardening and tempering steel and tempered steel, carburized steel sheet, soft metals, surface heat treating and chemical treating materials etc.
Technical Specification:

Model	570HAD
Rockwell Test Force	60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)
Brinell Test Force	30kgf (294.2N), 31.25kgf (306.5N), 62.5kgf (612.9N), 100kgf (980.7N), 187.5kgf (1839N)
Vickers Test Force	30kgf (294.2N), 100kgf (980.7N)
Indenter	Diamond Rockwell Indenter, Diamond Vickers Indenter, Φ1.588mm, Φ2.5mm, Φ5mmBall Indenter
Hardness Reading	LCD Screen Display
Test Scale	HRA, HRBW, HRC, HRD, HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW10/100, HV30, HV100
Conversion Scale	HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW
Magnification	Brinell: 37.5×, Vickers: 75×
Min. Measuring Unit	Brinell: 0.5μm, Vickers: 0.25μm
Hardness Resolution	Rockwell: 0.1HR, Brinell: 0.1HBW, Vickers: 0.1HV
Dwell Time	0~60s
Data Output	Built-in Printer,RS232 Interface
Max. Sample Height	Rockwell: 185mm, Brinell: 100mm, Vickers: 115mm
Throat Depth	165mm
Power Supply	AC220V,50Hz
Execute Standard	ISO 6508,ASTM E18,JIS Z2245,GB/T 230.2 ISO 6506,ASTM E10,JIS Z2243,GB/T 231.2 ISO 6507,ASTM E92,JIS Z2244,GB/T 4340.2
Dimension	520×240×740mm, Packing Dimension: 650×370×980mm
Weight	Net Weight: 80kg,Gross Weight: 105kg

Packaging & Shipping Packing List

Name	Qty	Name	Qty
Instrument Main Body	1 set	Diamond Rockwell Indenter	1 pc
Diamond Vickers Indenter	1 pc	Φ1.588mm,Φ2.5mm,Φ5mm Ball Indenter	each 1 pc
Slipped Test Table	1 pc	Φ150mm Flat Anvil	1 pc
Φ74mm Flat Anvil	1 pc	Φ40mm V-shaped Anvil	1 pc
15× Digital Measuring Eyepiece	1 pc	2.5×, 5× Objective	each 1 pc
Hardness Block 60~70 HRC	1 pc	Hardness Block 20~30 HRC	1 pc
Hardness Block 80~100 HRBW	1 pc	Hardness Block 700~800 HV30	1 pc
Hardness Block 150~250 HBW 2.5/187.5	1 pc	Microscope System (include the inside light and outside light)	1 set
Weights 0, 1, 2, 3, 4	5 pcs	Power Cable	1 pc
Fuse 2A	2 pcs	Horizontal Regulating Screw	4 pcs
Level	1 pc	Spanner	1 pc
Screw Driver	1 pc	Anti-dust Cover	1 pc
Usage Instruction Manual	1 copy

Package
Our products are packed in standard wooden boxes, specially for export. Since the hardness tester is a precision instrument, the product is fixed in a wooden box with straps and screws to prevent bumps and damage during transportation.
Precision instruments need to be handled with care, and need to be fixed on their own workbench after disassembly.
