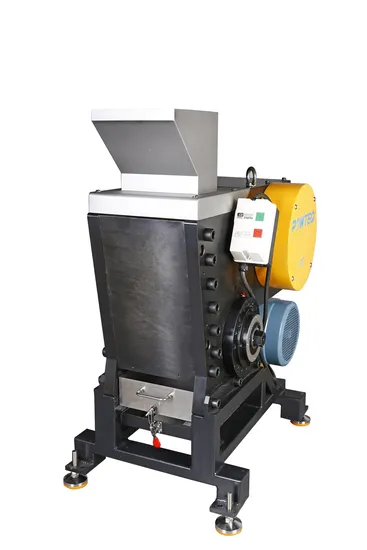

Lab Jaw Crusher for Mining and Metallurgical Industries

Product Description

Jaw Crusher JC5 are used to process medium-hard, hard, brittle and tough sample fast and gently. There are 6 kinds of materials for the jaw plate.This series of products with superior technical and safety performance, so it is your ideal choice for the sample preparation in the laboratory and enterprise production.

Application

○ Mining and metallurgical industries:niobium and titanium alloy, vanadium iron, chrome vanadium, tungsten carbide, ore, coal, slag, coke
○ Chemical products: wide variety of chemical industry raw materials
○ Geological and mineralogical: rock, granite, basalt, barite, silicate
○ Ceramic industry: talc, sintered clay, sintering ceramic, electric ceramic
○ Building materials: bauxite, slag brick, quartz, cement

Working principle

The sample enters the grinding chamber via the anti-splashing hopper. The crushing is proceeded inside the wedge-shaped shaft space between two jaw plates. one jaw plate is fixed, while the other jaw plate is driven by a bent axle to perform oval movement with the continuous rotation of the motor. The sample is crushed due to extrusion caused by constant movements of the jaw plate and moves downward under the effect of gravity. In case the grain size of the sample is less than the lower opening gap of jaw plates, it will fall to the drawer receiver at the lower part of the machine.

Technical advantages

○Comfortable operation and easy cleaning
The feed hopper of JC5 can roll over to one side or be removed easily. In this way, operators can clean the grinding chamber rapidly. The samples are collected in a drawer receiver and easy for the operator to proceed subsequent analysis. ○ High-safety design
The jaw crusher JC5 has high-level safety performance. The feed hopper can avoid scratching of operators touching the grinding chamber. The hopper baffle can prevent the rebound of samples from injuring persons. Furthermore, a safety switch is equipped at the upper of the feed hopper. The device cannot be started when the hopper is opened so as to guarantee the safety of operators. The motor and the controller also have overload protection devices; motor overload will occur when the load is too large (excessive sample loading or sample oversized). At this moment, such overload protection devices will automatically shut off the power supply to protect the motor and the crusher. ○ Eco-friendly design
We have equipped thoughtful dust - protection design for JC5 jaw crushers. In addition, in order to avoid environmental pollution caused by tiny dust particles, we equipped dust discharge connectors for the crushers. Operators can easily remove the dust particles inside the crusher by connecting industrial dust collectors with such dust discharge connectors.

Techniacal Data

Feed size	<90mm
Final fineness	<2mm
Speed	305rpm
Collector capacity	5L
Jaw plate width	99mm
Gap setting	0~30mm
Zero point adjustment	Yes
Rated power	2.2KW
Power supply	380V, 50Hz
Instrument size(W*D*H)	440x 930x1090mm
Package size(W*D*H)	800×1165×1330mm
Net Weight	320kg

*Information on this site is provided for information purposes only and the contents hereof are subject to change without notice.

Packaging & Shipping
Company Profile
Beijing Grinder Instrument Co.,Ltd. is a high-tech enterprise and a professional laboratory manufacturer. The production base is located in Yanjiao Baishijingu Industrial Park, Hebei P.R.C China.
Since the foundation of POWTEQ, we are doing our best to research and develop the grinding instruments with high quality. Our main products are including Jaw Crusher, Disc Mill, Cutting Mill, Mortar Grinder, Planetary Ball Mill, Micro Ball Mill, High Speed Rotary Mill and Knife Mill etc. All of them can meet different grinding requirements for laboratory sample testing. Our products are used in the fields of education, scientific research, metallurgy, biological, medicine, building materials, electronic manufacturing, energy saving and environmental protection, and have a good reputation in the sample preparation field.
Most professional , most perfect and most suitable sample preparation solution

Laboratory Look

Application Consulting
POWTEQ company meet the requirements of customers for sample preparation instrument, provide professional technical consulting for different samples, help you to find the perfect solution.
Technical Service
POWTEQ's high-quality instrument,is with smooth performance ,long service life, easy installation and maintenance. If you have any questions,please feel free to contact with us.
Technical Seminar
POWTEQ company holds several technical seminars aimed at different industry in different place every year, provides the customer with the latest information on the products, sample preparation technology.

Manufacturing base

Exhibiton Look

POWTEQ And EVERFUGE At Analytica 2024
POWTEQ and EVERFUGE are exploring international market actively and doing our best to research and develop laboratory mill and centrifuges with high quality. We have attended the Analytica 2024 in Munich to present our innovative instruments.
