Hualong Machinery Hot Sale CNC Cutting Machine Waterjet for Metal, Stone, Glass with Accurate Cutting

Product Description

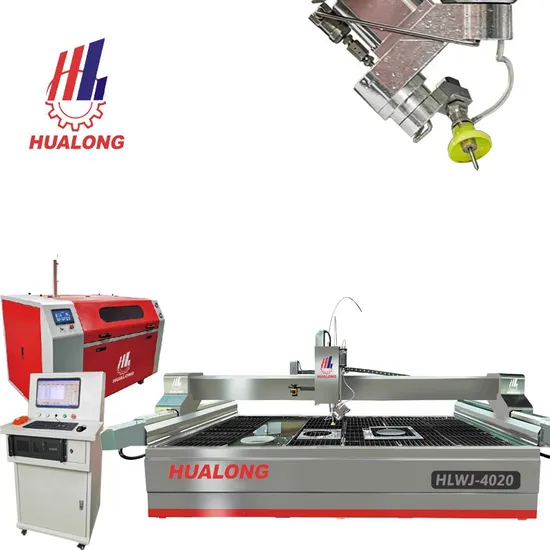

Hualong CNC Waterjet Cutting Machine HLWJ-4020 , which using a very high-pressure jet of water and abrasive (typically garnet) to erode a narrow line in the stock material, is an industrial tool capable for cutting almost any material while maintaining high precision.
This 5 axis waterjet cutter can cut any angle within +60°, it solves the traditional problem of water cutting inclination, and achieves 2D/3D cutting easily.The line cutting accuracy is +0.1mm, angle cutting accuracy is +0.1°.
Our machine is applied to cut bevel surface, straight surface, conical surface, circular surface, rotating surface, groove, chamfer, and arbitrary surface. It is able to cut steel, stainless steel, aluminum titanium, marble, granite, ceramic, glass, rubber, foam and many other materials.Main Features:1) Processable for any curve cutting, flexible, convenient and versatile.
2) Notch is fast and smooth, no dust, no thermal deformation and no pollution. Tension-free processed parts due to minimal cutting force.3) Narrow kerf - The amount of material removed by the water jet stream is typically about 0.5-1.0 mm wide. Cut width optimizes material use, increasing cost effectiveness.
4) Cut Recovery - Pick back up where Jet stopped.
5) Programmable Z axis height. Z axis retracts between pierces.
6) Servo motor, linear sledge and vehicles, helical rack and pinions is used for providing a rapid and smooth axial movement.
7) High-Performance drive system, which permit high-precision production of parts as well as the highest processing speed.
8) Driver system sealed against water,dust and grit. Long working life.

Technical Data for water jet cutting machine
Model No.		HLWJ-3020	HLWJ-4020
Working area	mm	3300*2100	4100*2100
X-axis stroke	mm	3200	4000
Y-axis stroke	mm	2000	2000
Z-axis stroke	mm	80-130	80-130
Max. angle of C axis rotation	°	+/- 360	+/- 360
Max. angle of A axis swing	°	+/- 60	+/- 60
Cutting accuracy	mm	+/- 0.1	+/- 0.1
Repeatable accuracy	mm	+/- 0.05	+/- 0.05
Traverse speed	mm/min	5000/15000	5000/15000
Main motor power	kw	37	37
Dimension (L x W x H)	cm	443x278x220	494x280x222

Accessories:
Application:* Stone/Ceramic industries such as used for countertops, art puzzles, flooring Inlays and mosaics.* Glass industry, such as bathroom glass, shop window glass, automotive glass and appliance glass.
* Metal industries such as Decoration, decoration in the stainless steel and other metal cutting process, equipment cover cutting, cutting of metal parts.
* Gasket Cutting
* Foam Product Cutting.
Detail Images:Water Jet SoftwareBrand: WeihongOriginal: China
A mature motion control solutions, to solve the high pressure water jet taper, towing and other technical problems, and realize perfect dynamic five-axis cutting, easy to operate and to learn. Main MotorProduced by : Siemens
Original: China
Power: 37 kw
Efficiency: 92.7%
To generate motion energy throught electtical energy for high pressure pump Main MotorProduced by : Siemens
Original: China
Power: 37 kw
Efficiency: 92.7%
To generate motion energy throught electtical energy for high pressure pump Servo MotorBrand: WeihongOrigin: China
Nr of revolutions: 0-1500 rpm Drive X axis moving accuracy and reposefully.Our Service
·All of our machine will be full-checked and tested by our quality control department before shipment.
·Lifetime technology maintenance in free
·Spare parts supply in free due to our defects within 12 months' warranty time and at cost out of 12 months.
·Free training for installation, operation and maintaince.
·Technical support all working days.
·English version 'instruction books', "Operation Manual" will be offered.
Packaging & Loading
1)All parts wrapped by waterproof PE film and/or air bubbles.
2)Spare and accessary parts of small size packed in plywood cartons.
3)With steel ropes to fix in container, anti-skid suitable for long distance shipment.
FAQ
Q1: Do You Offer Free Samples?
A1: Normally we don't offer free samples. But further solutions will be discussed respectively upon request.
Q2: Can You Supply Us Wearing Parts For The Bridge Cutting Machine?
A2: Sure, it is our duty.
Q3: How About The Delivery Time After Payment For The Order?
A3: Normally 25-45 days. It depends on the ordered models, quantity and our production duty engaged already.
Q4: What Service Can You Provide?
A4: Online technology support, engineers arranged to overseas for guiding machine installation training operation, debugging and maintenance.

---
